Lithium

Description

A minimal form bolstered by die-cast aluminum hardware, Lithium is the epitome of versatility. An extruded acrylic diffuser softens the light for perfect, long-lasting illumination. The cutting-edge LED array within is factory sealed under tempered glass to allow mounting versatility. Mount it vertically or horizontally, inside or out. It looks good everywhere. Choose from lustrous black or sleek aluminum finishes.

Specifications

Model Color Temperature Width Height Length Voltage Watts Finish
WS-W12809-30 3000K 5
9
514
120 VAC 10.0 AL Brushed Aluminum
WS-W12809-30 3000K 5
9
514
120 VAC 10.0 BK Black
WS-W12809-40 4000K 5
9
514
120 VAC 10.0 AL Brushed Aluminum
WS-W12809-40 4000K 5
9
514
120 VAC 10.0 BK Black
WS-W12816-30 3000K 5
16
514
120 VAC 20.0 AL Brushed Aluminum
WS-W12816-30 3000K 5
16
514
120 VAC 20.0 BK Black
WS-W12816-40 4000K 5
16
514
120 VAC 20.0 AL Brushed Aluminum
WS-W12816-40 4000K 5
16
514
120 VAC 20.0 BK Black
WS-W12824-30 3000K 5
24
514
120 VAC 37.0 AL Brushed Aluminum
WS-W12824-30 3000K 5
24
514
120 VAC 37.0 BK Black
WS-W12824-40 4000K 5
24
514
120 VAC 37.0 AL Brushed Aluminum
WS-W12824-40 4000K 5
24
514
120 VAC 37.0 BK Black

Features

  • Extruded acrylic diffuser
  • Can be mounted vertically or horizontally
  • No transformer or driver needed
  • 277V option available (see spec sheet for more information)
  • Dimmer: ELV
  • CRI: 90
  • Rated Life: 54000 hours
  • Title 24 JA8: 2016 Compliant

CCT Chart

This product has a color temperature of 3000.

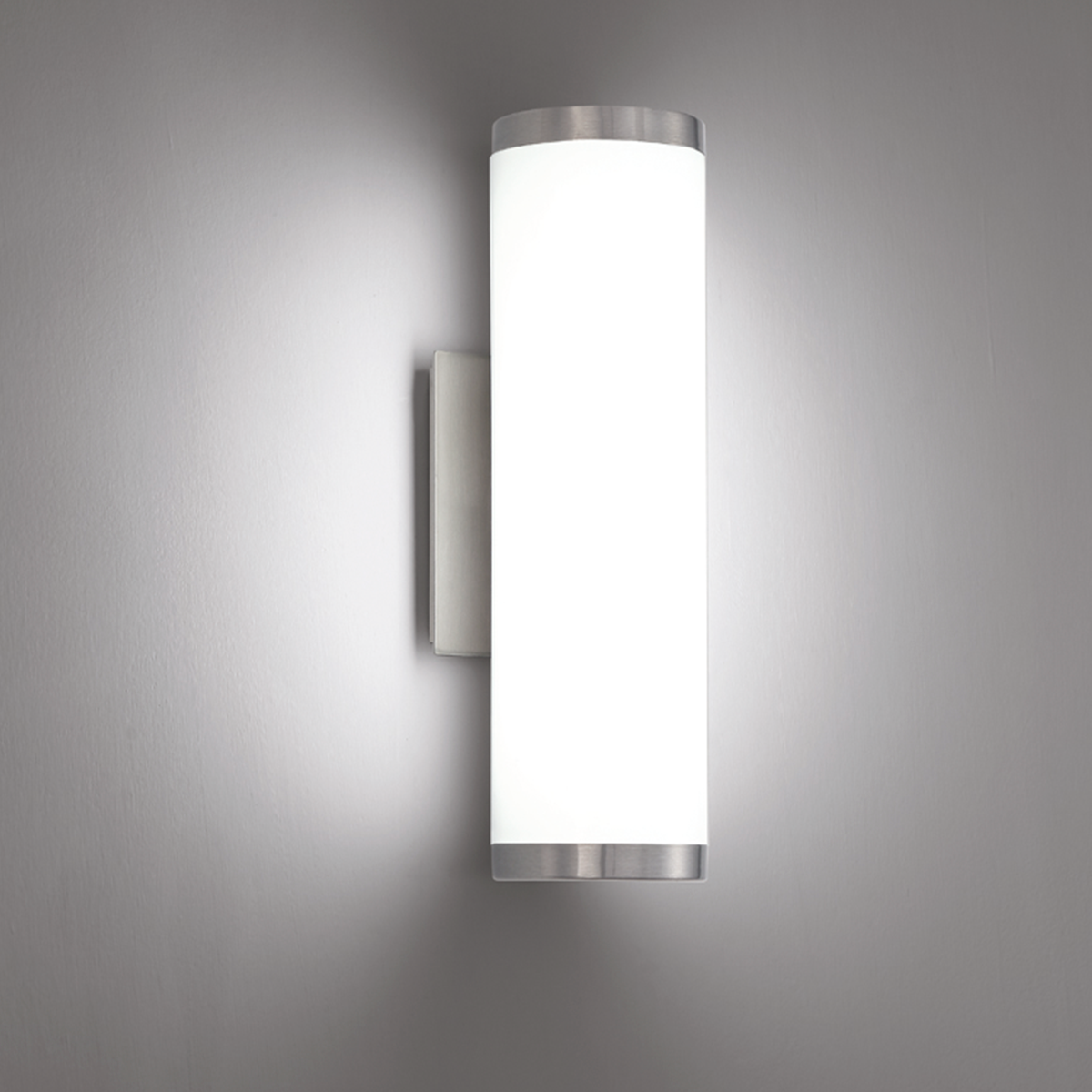

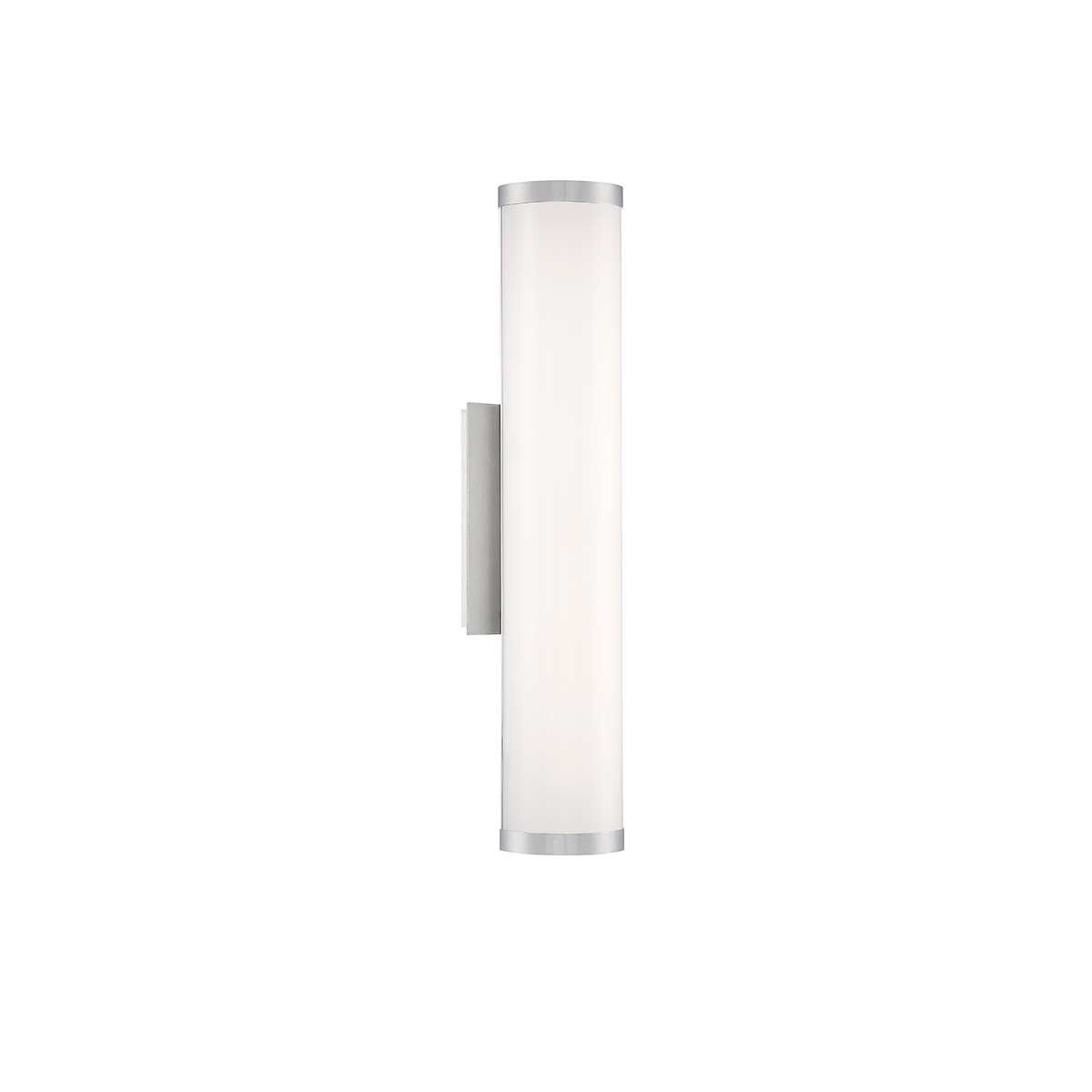

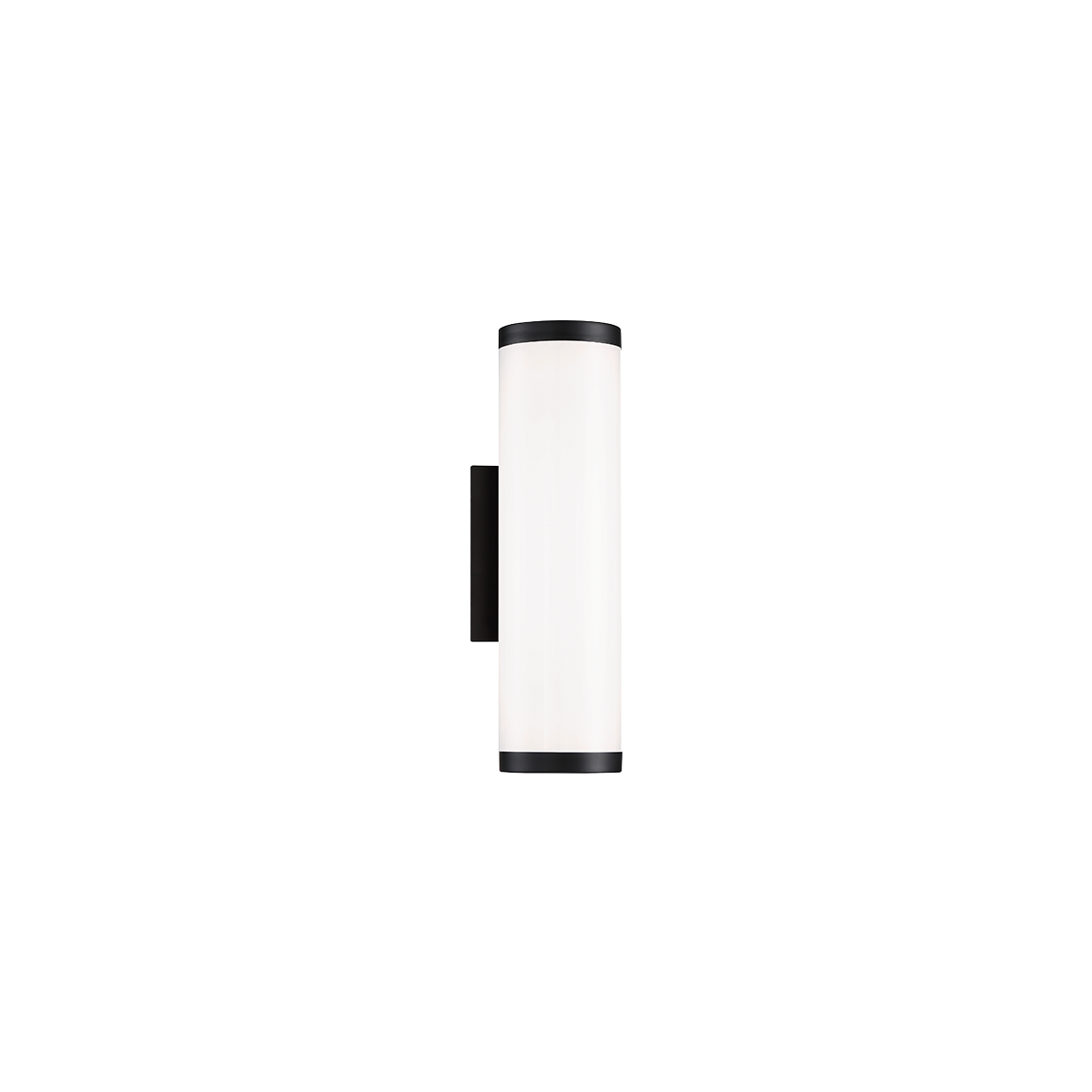

Aesthetic Images

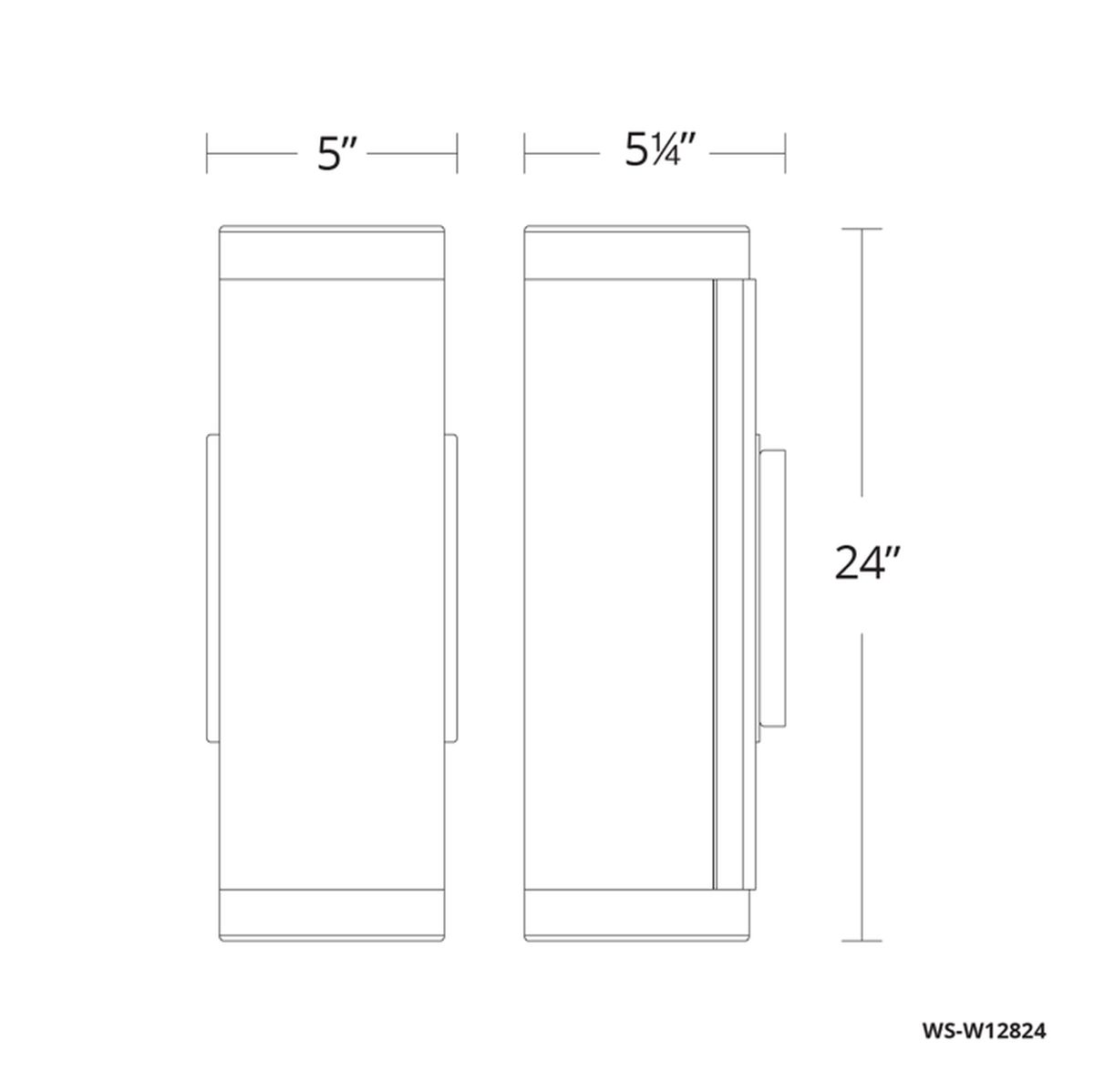

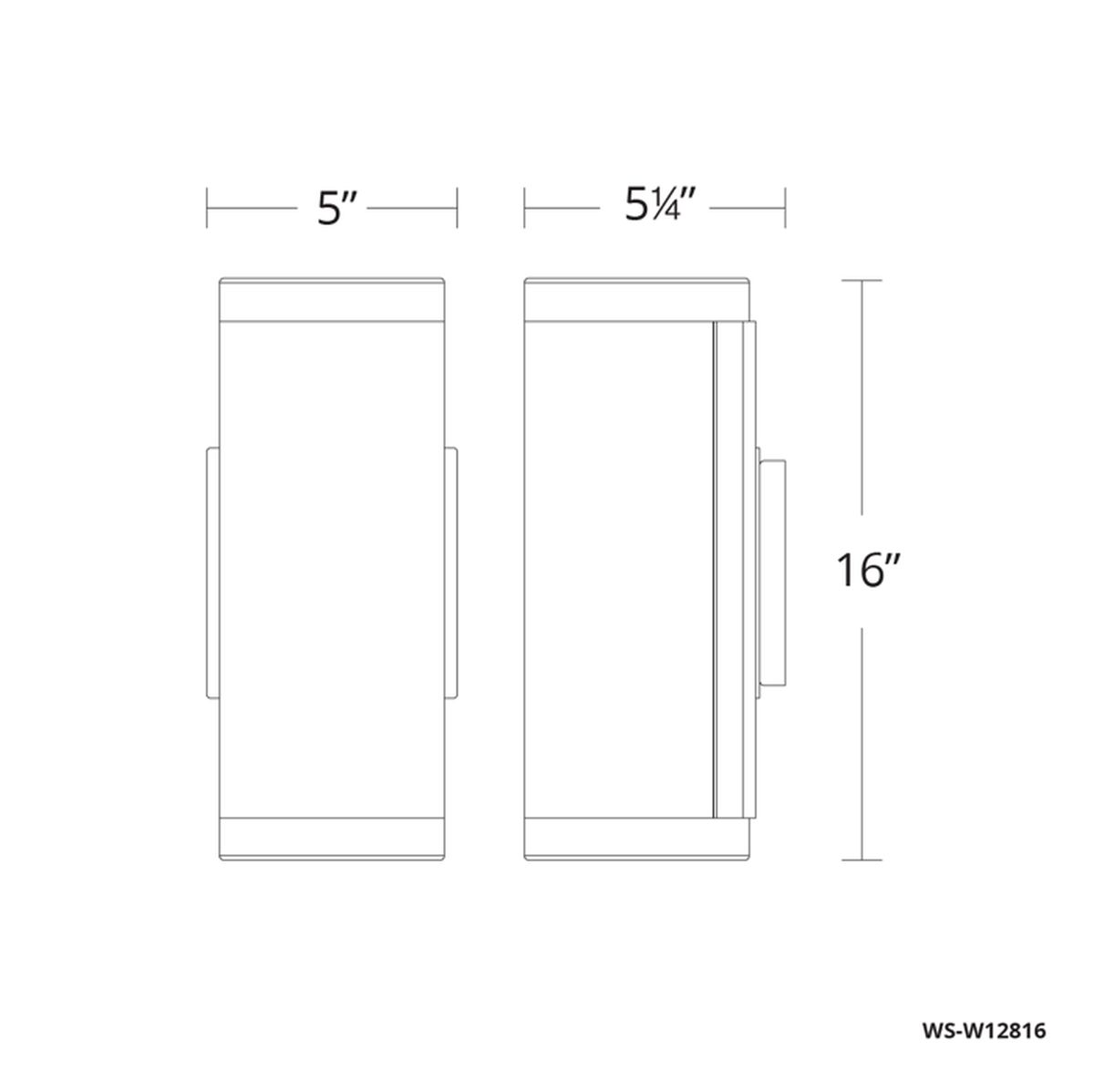

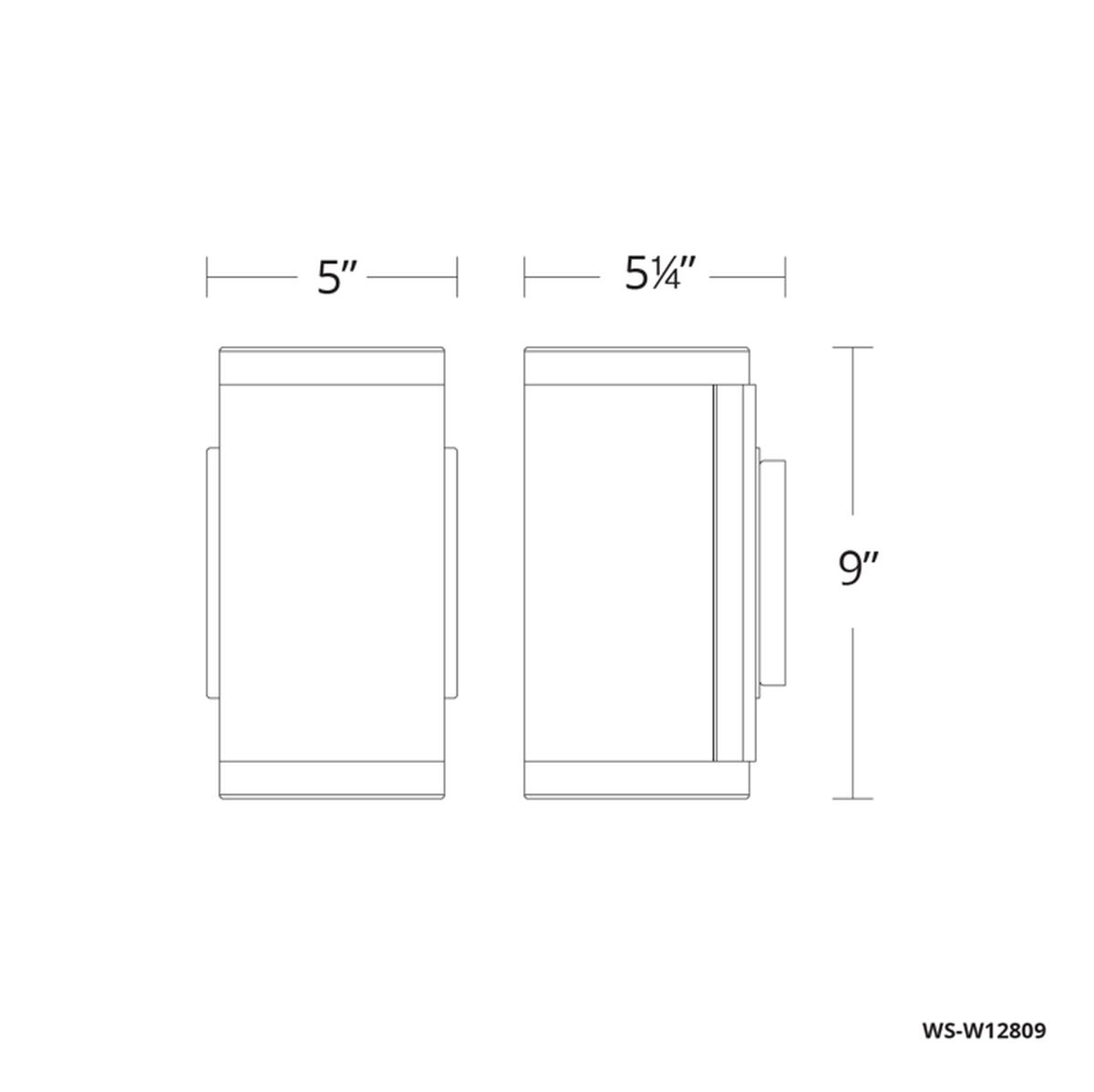

Line Drawing
