Description
Crafted from die-cast aluminum for a seamless appearance, Bloc is minimalist in form and maximalist in performance, delivering superior LED light through a factory-sealed glass lens silk-screened with ceramic for diffuse even illumination. Cubism never looked so good.
Specifications
| Model | Color Temperature | Width | Height | Length | Voltage | Watts | Finish |
|---|---|---|---|---|---|---|---|
| FM-W9200 | 3000K |
51⁄2″ |
31⁄2″ |
51⁄2″ |
120-277v | 17 | AL Brushed Aluminum |
| FM-W9200 | 3000K |
51⁄2″ |
31⁄2″ |
51⁄2″ |
120-277v | 17 | BK Black |
| FM-W9200 | 3000K |
51⁄2″ |
31⁄2″ |
51⁄2″ |
120-277v | 17 | BZ Bronze |
| FM-W9200 | 3000K |
51⁄2″ |
31⁄2″ |
51⁄2″ |
120-277v | 17 | WT White |
Features
- Die-cast aluminum hardware, silk-screened glass
- Universal voltage driver (120V-220V-277V) within fixture
- 2700K and 4000K CCT options available (see spec sheet for more information)
- Can be mounted on wall or ceiling
- Dimmer: ELV, 0-10V
- CRI: 90
- Rated Life: 60000 hours
- Title 24 JA8: 2019 Compliant
CCT Chart

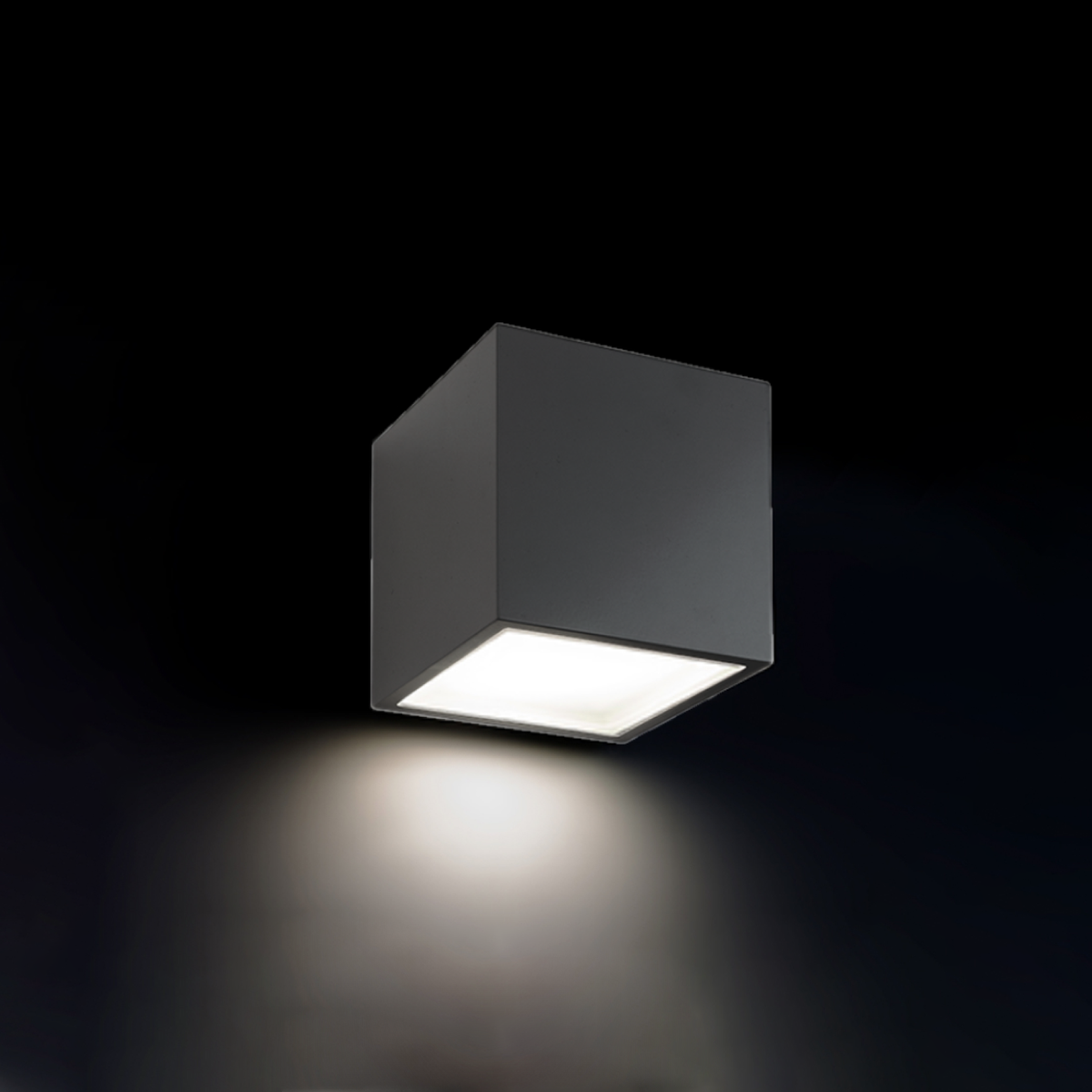

Aesthetic Images

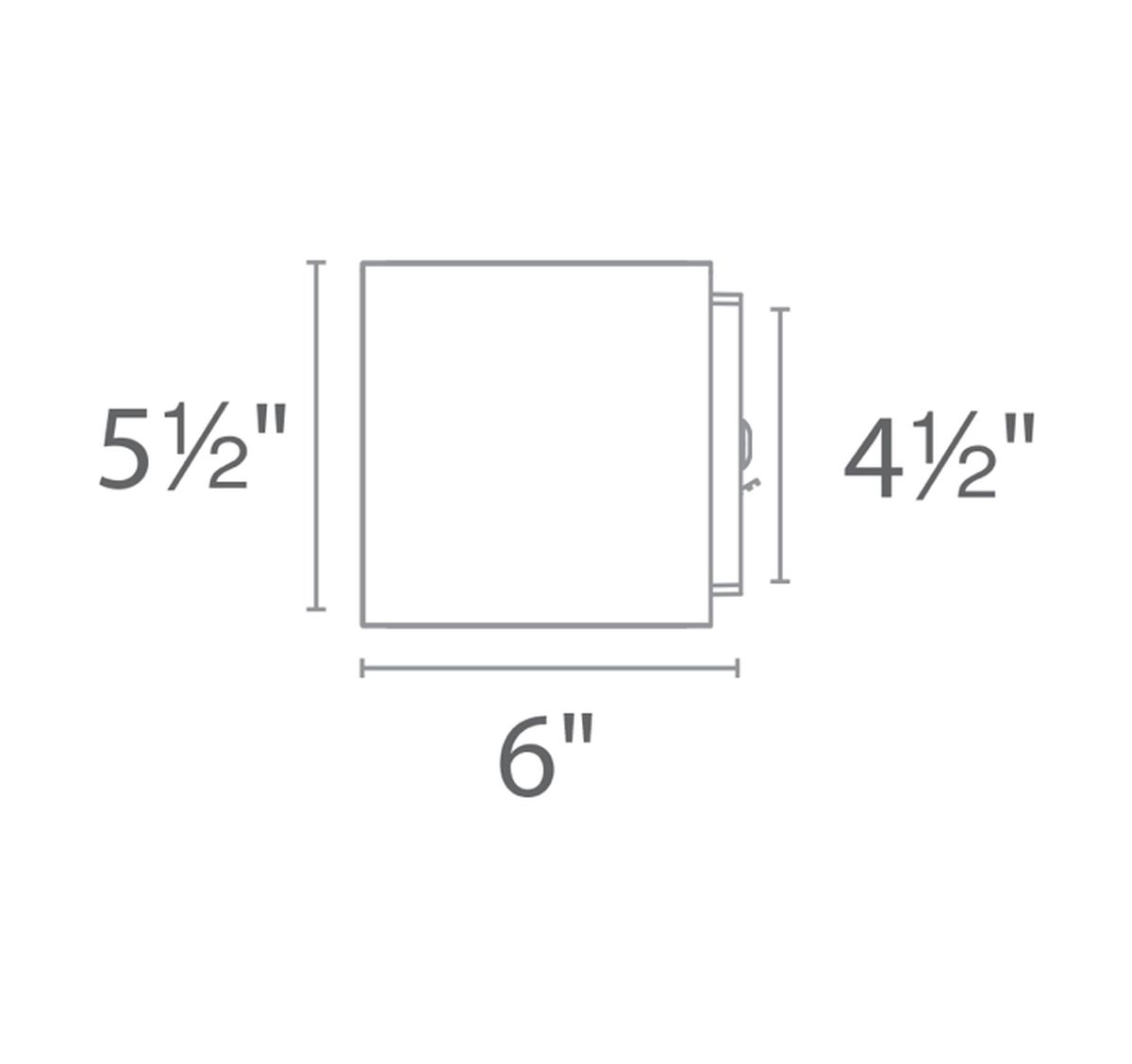

Line Drawing
