Description
LEDs are set at an angle to illuminate the wall surrounding the sconce while minimizing glare seen from the side. An exceptional option for illuminating corridors or stairwells where it may be challenging to find an ADA sconce that looks attractive from multiple viewing angles.
Specifications
| Model | Color Temperature | Width | Height | Length | Voltage | Watts | Finish |
|---|---|---|---|---|---|---|---|
| WS-94614 | 3000K |
41⁄2″ |
14″ |
3″ |
120-277v | 20.5 | AL Brushed Aluminum |
| WS-94614 | 3000K |
41⁄2″ |
14″ |
3″ |
120-277v | 21.0 | WT White |
| WS-94620 | 3000K |
41⁄2″ |
20″ |
31⁄8″ |
120-277v | 27.0 | AL Brushed Aluminum |
| WS-94620 | 3000K |
41⁄2″ |
20″ |
31⁄8″ |
120-277v | 27.0 | WT White |
Features
- Aluminum hardware, acrylic diffuser
- Can be mounted vertically or horizontally
- Universal voltage driver (120V-220V-277V) within standard 4” junction box
- Dimmer: ELV
- CRI: 90
- Rated Life: 85000 hours
CCT Chart

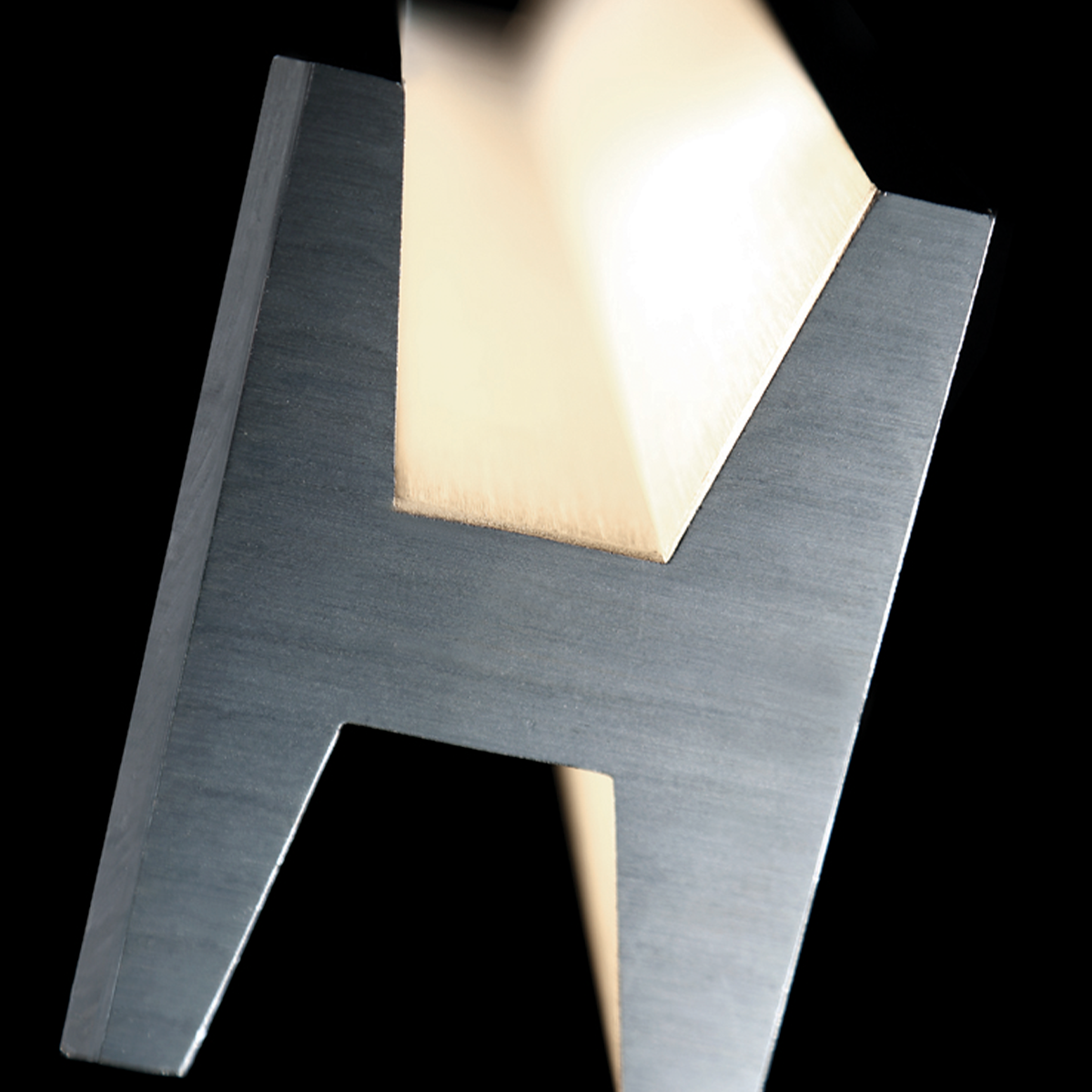

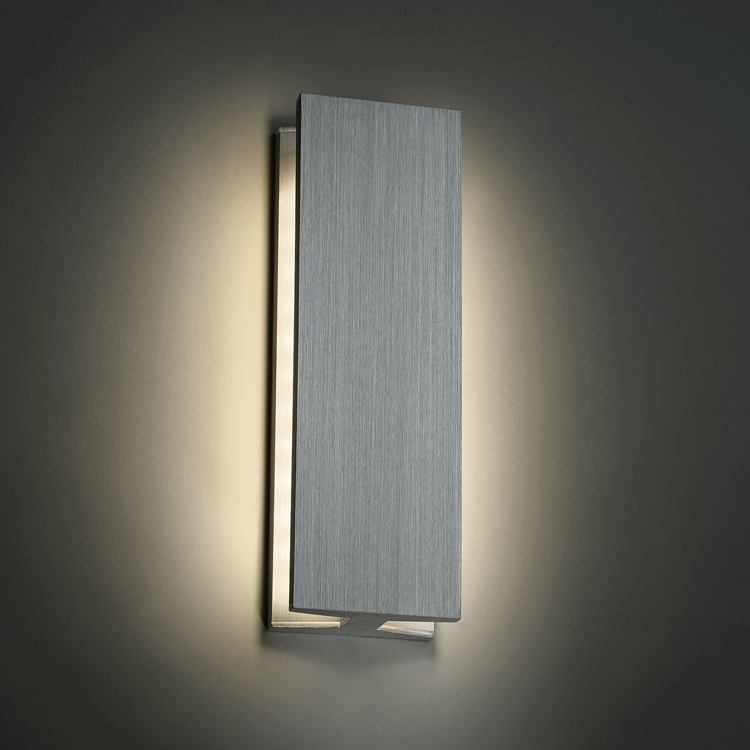

Aesthetic Images

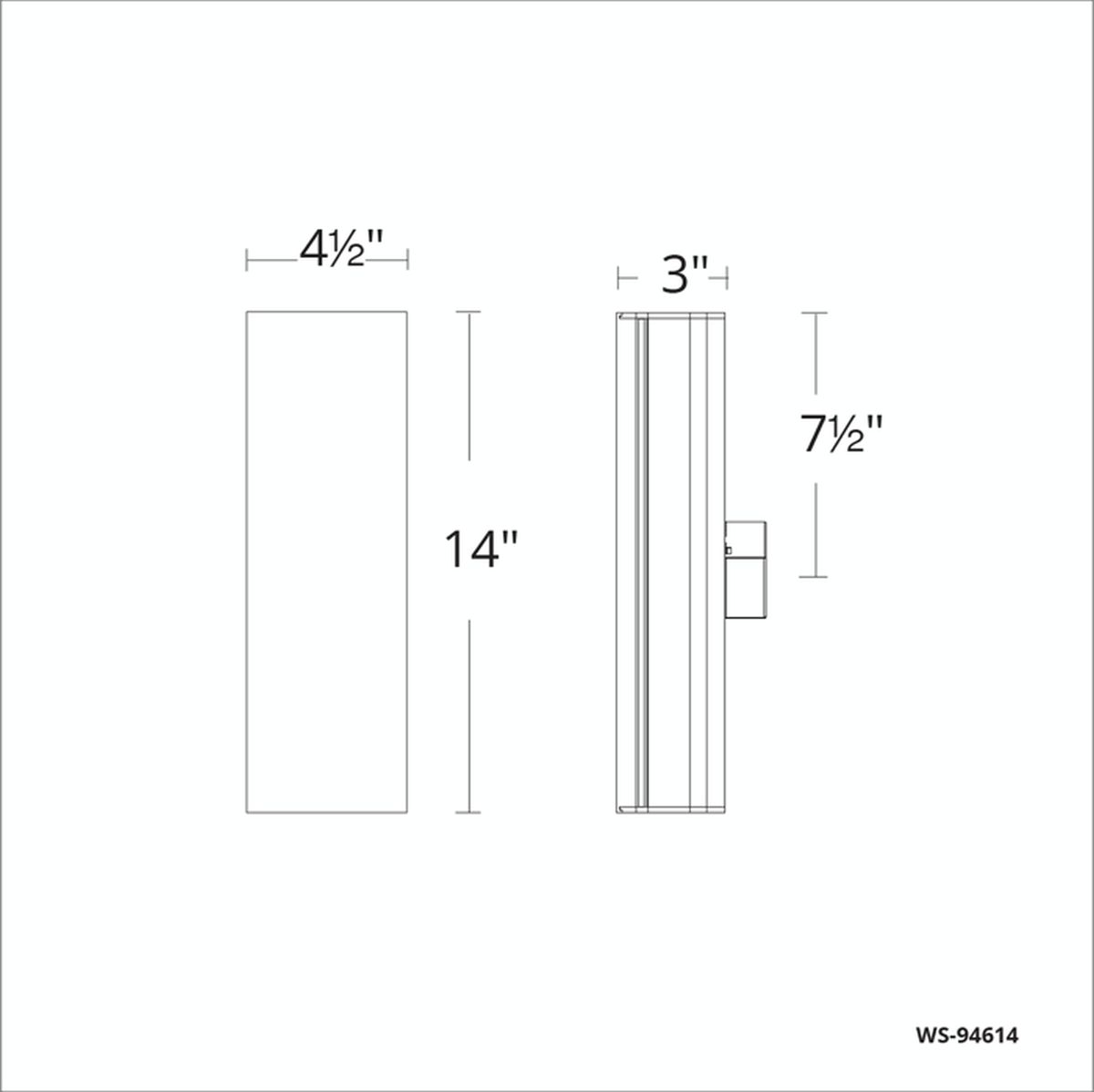

Line Drawing
