Description
Modern and ultra-minimal. Lightstick is a slim LED vanity luminaire designed perfectly for residential, hospitality and commercial powder rooms. A slender bar of light constructed from a co-extrusion of clear and white acrylic affords the luxurious dimensional look of cased glass but durable enough for its dramatic proportions. The versatile design allows it to be placed horizontally or vertically or even at angles on walls and ceilings.
Specifications
| Model | Color Temperature | Width | Height | Length | Voltage | Watts | Finish |
|---|---|---|---|---|---|---|---|
| WS-47919 | 3000K |
2″ |
13⁄8″ |
19″ |
120 VAC | 17 | AL Brushed Aluminum |
| WS-47919 | 3000K |
2″ |
13⁄8″ |
19″ |
120 VAC | 17 | WT White |
| WS-47925 | 3000K |
2″ |
13⁄8″ |
25″ |
120 VAC | 22 | AL Brushed Aluminum |
| WS-47925 | 3000K |
2″ |
13⁄8″ |
25″ |
120 VAC | 22 | WT White |
| WS-47937 | 3000K |
2″ |
13⁄8″ |
37″ |
120 VAC | 34 | AL Brushed Aluminum |
| WS-47937 | 3000K |
2″ |
13⁄8″ |
37″ |
120 VAC | 34 | WT White |
| WS-47949 | 3000K |
2″ |
13⁄8″ |
49″ |
120 VAC | 44 | AL Brushed Aluminum |
| WS-47949 | 3000K |
2″ |
13⁄8″ |
49″ |
120 VAC | 44 | WT White |
| WS-47961 | 3000K |
2″ |
13⁄8″ |
61″ |
120 VAC | 53 | AL Brushed Aluminum |
| WS-47961 | 3000K |
2″ |
13⁄8″ |
61″ |
120 VAC | 53 | WT White |
| WS-47973 | 3000K |
2″ |
13⁄8″ |
73″ |
120 VAC | 64 | AL Brushed Aluminum |
| WS-47973 | 3000K |
2″ |
13⁄8″ |
73″ |
120 VAC | 64 | WT White |
| WS-47997 | 3000K |
2″ |
13⁄8″ |
97″ |
120 VAC | 88 | AL Brushed Aluminum |
| WS-47997 | 3000K |
2″ |
13⁄8″ |
97″ |
120 VAC | 88 | WT White |
Features
- Aluminum hardware, co-extruded acrylic diffuser
- 1" slim junction box included and can be ordered separately (model# JB-0501)
- No transformer or driver needed
- Conversion plate included for 4” junction box
- Can be mounted vertically, horizontally, on the wall, or on the ceiling
- Dimmer: ELV
- CRI: 90
- Rated Life: 54000 hours
- Title 24 JA8: 2019 Compliant
CCT Chart

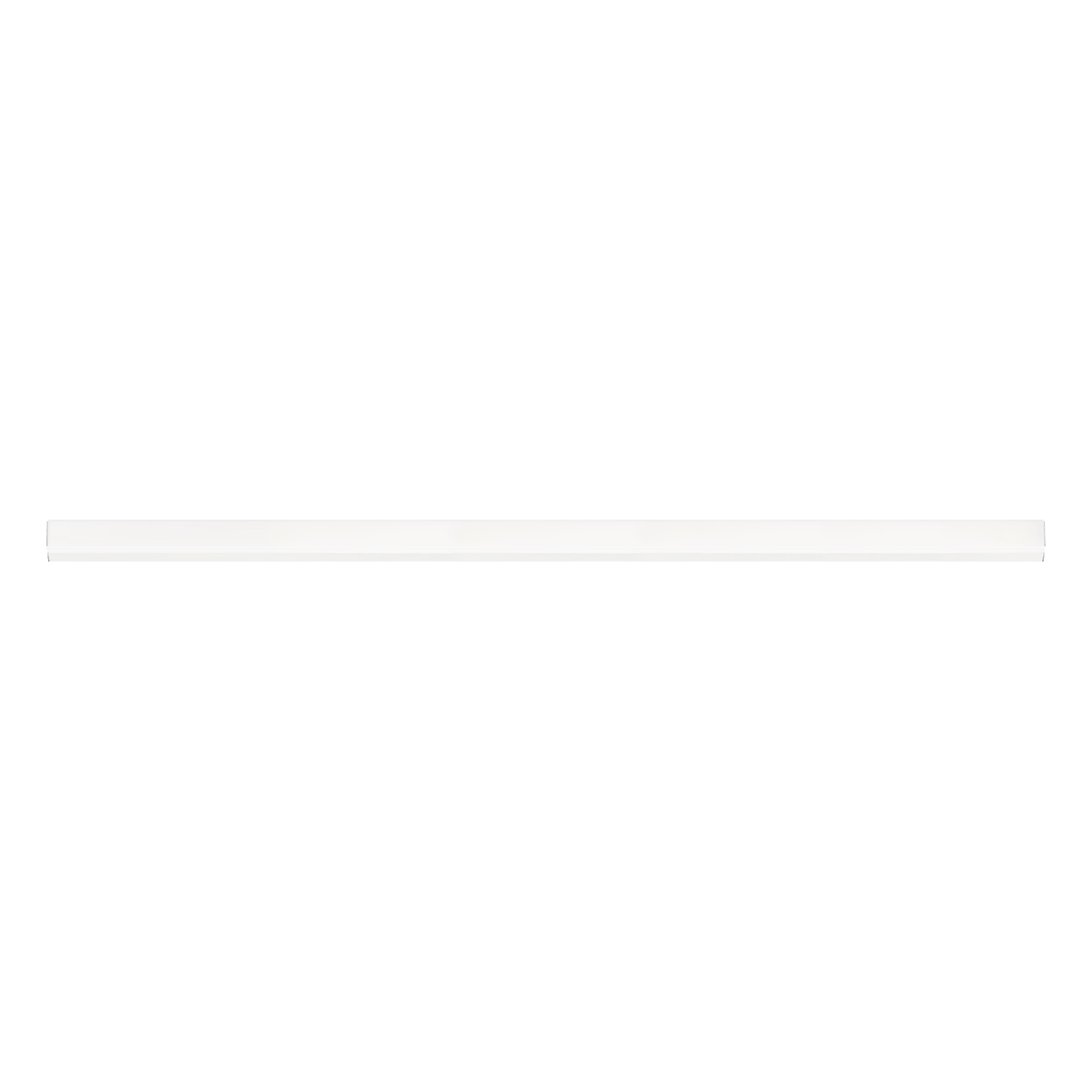

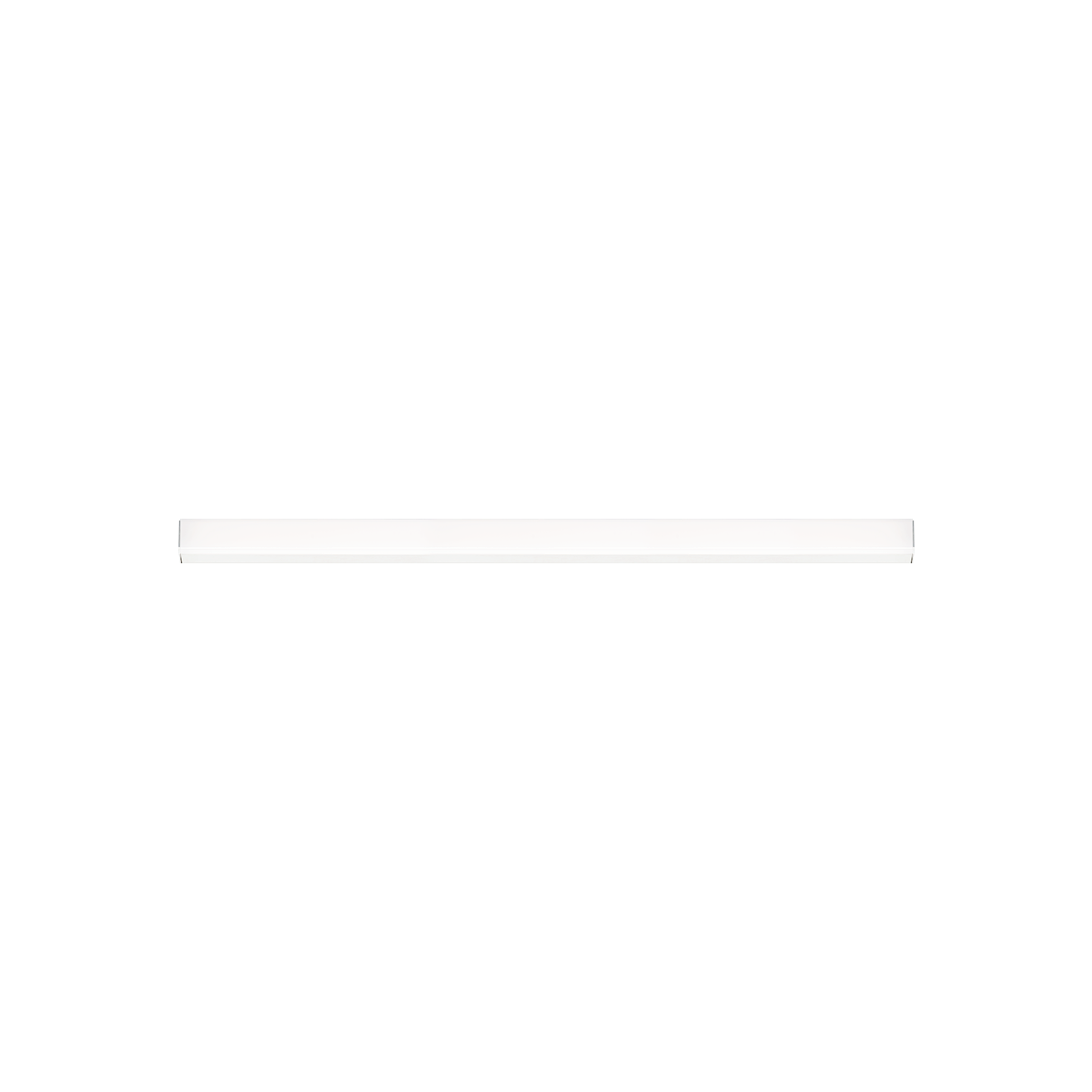

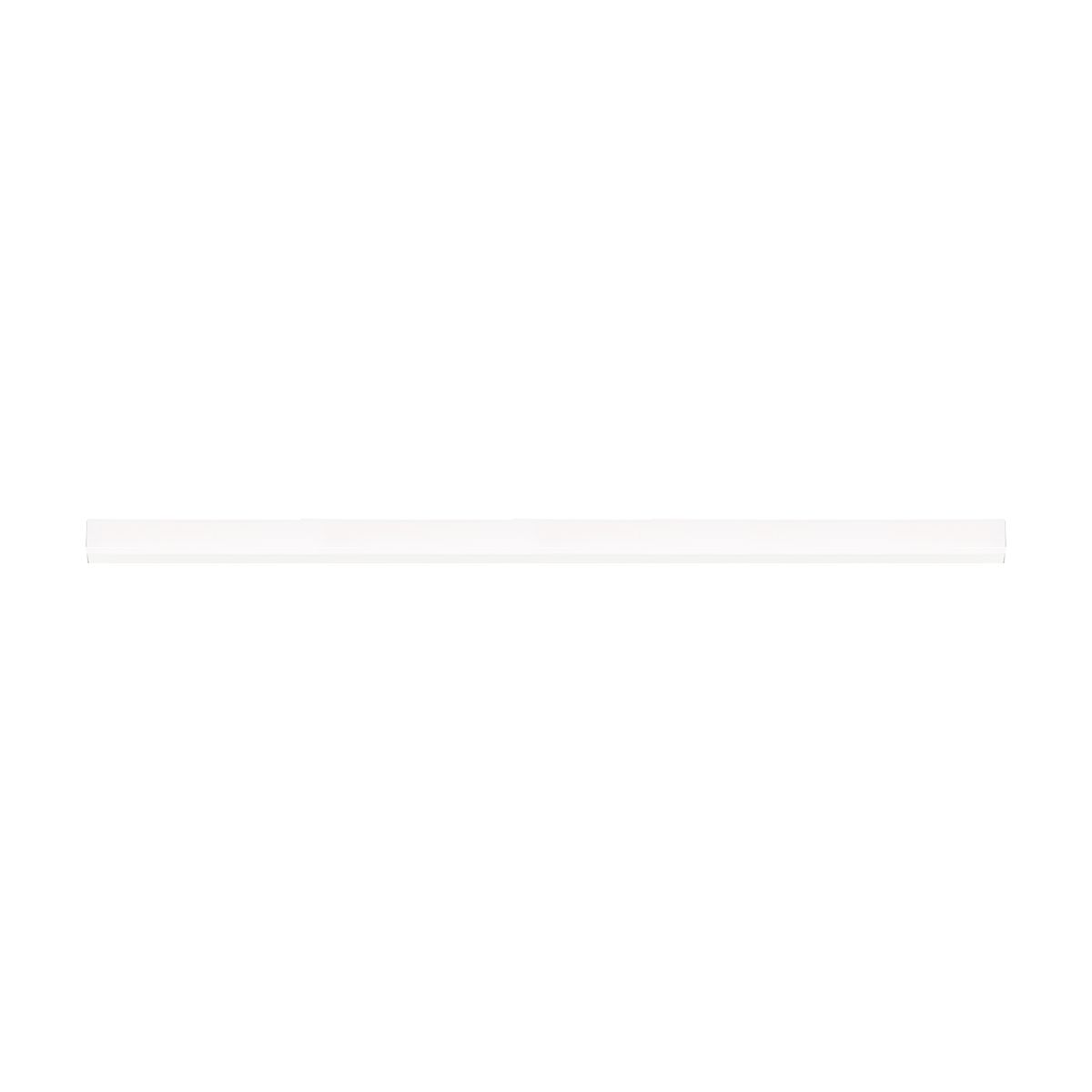

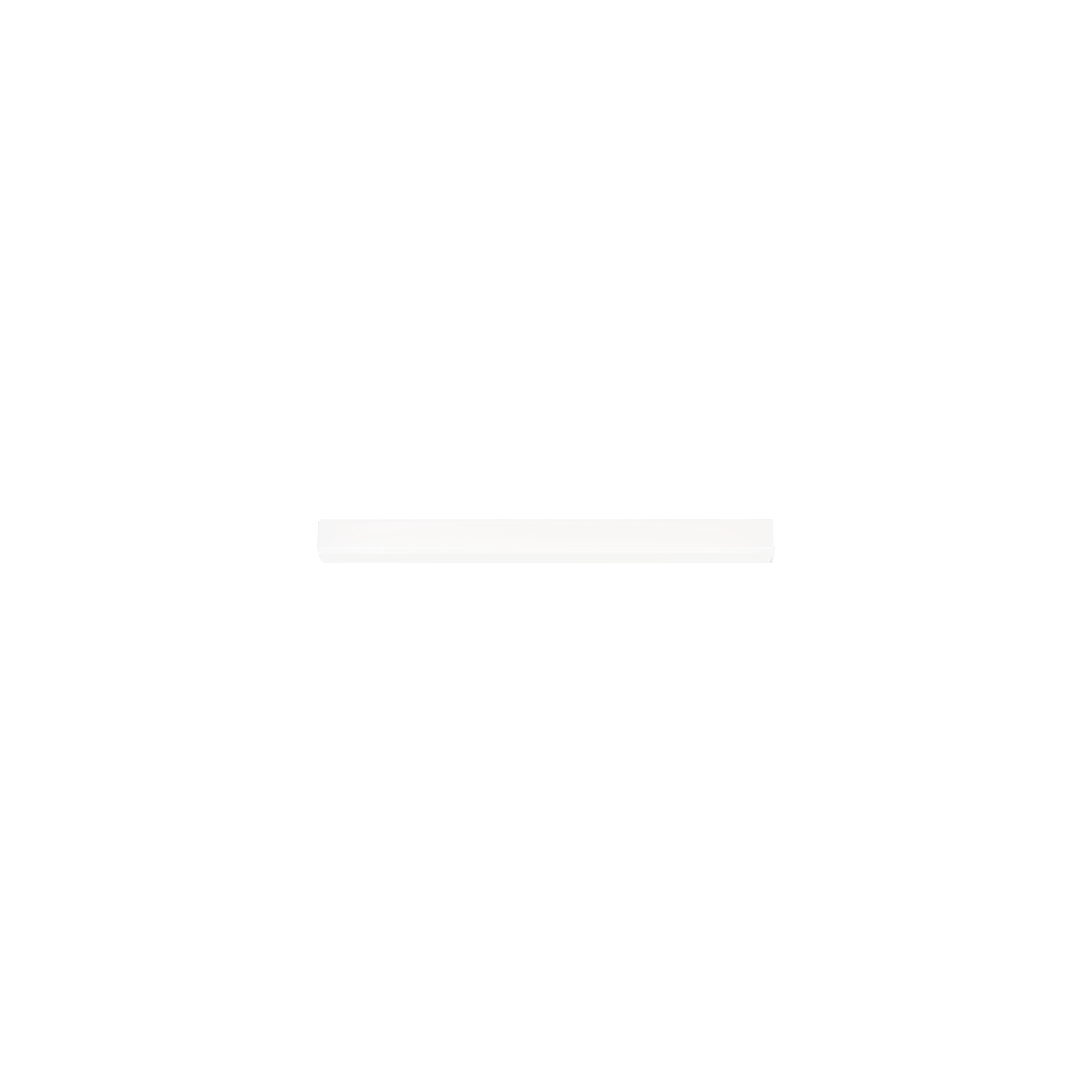

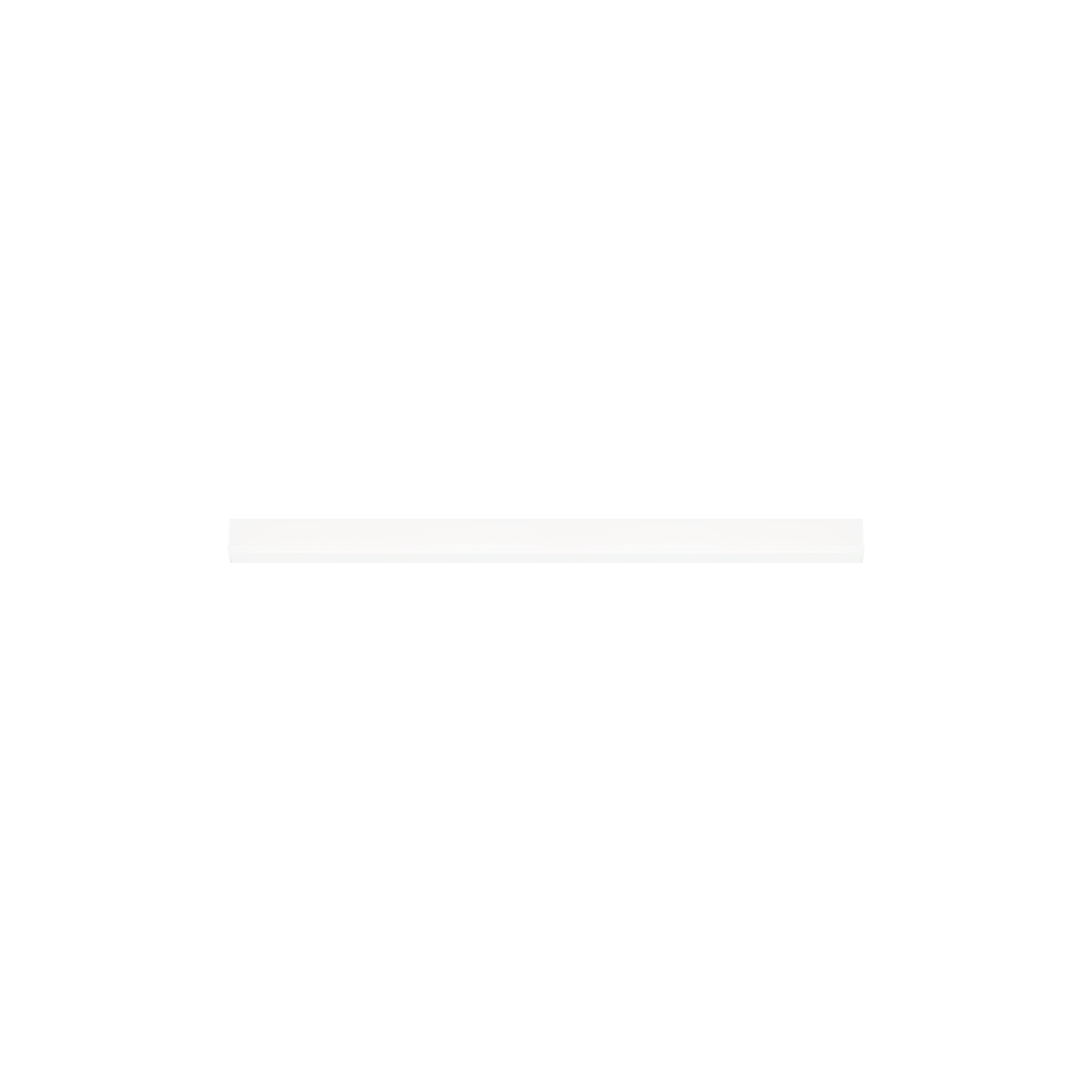

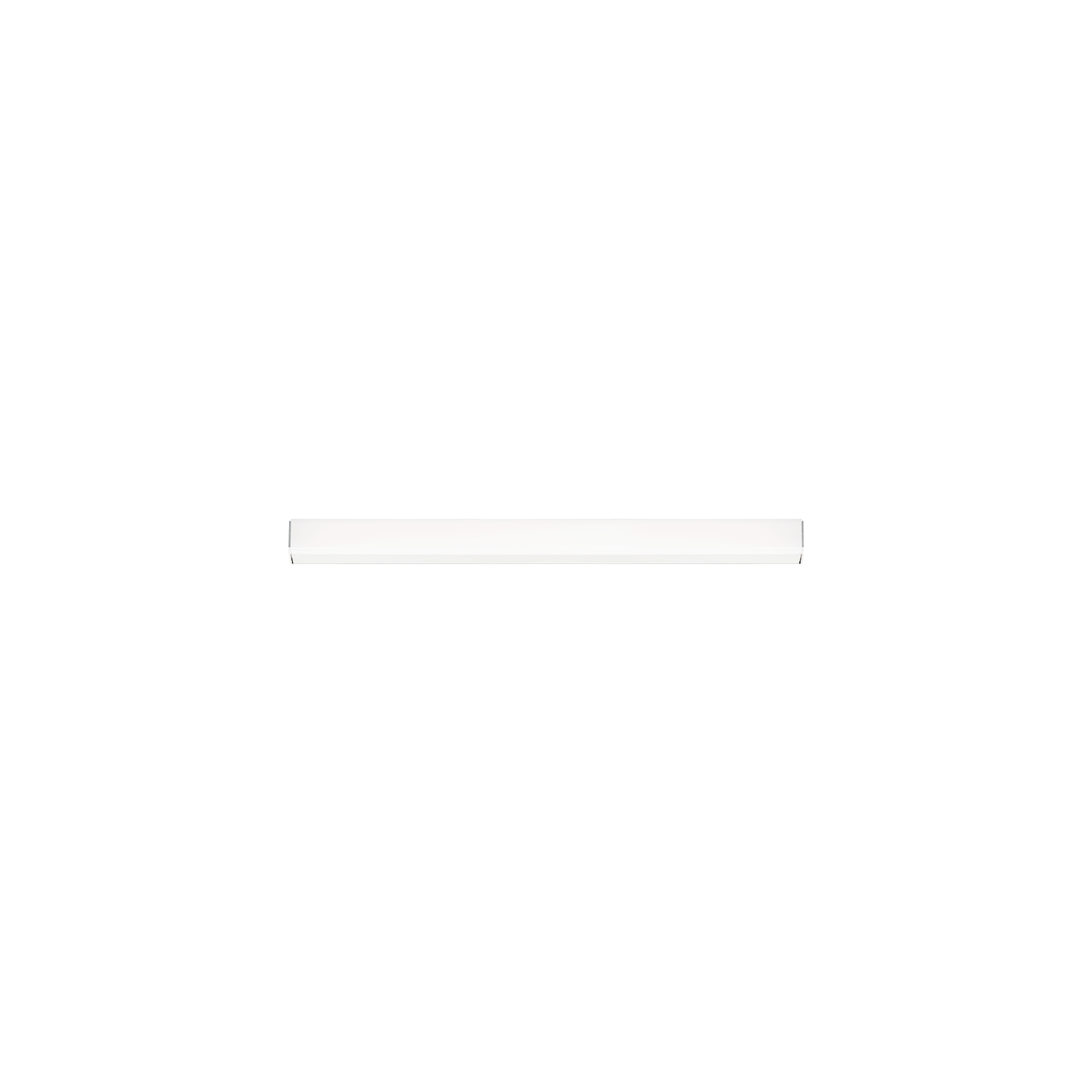

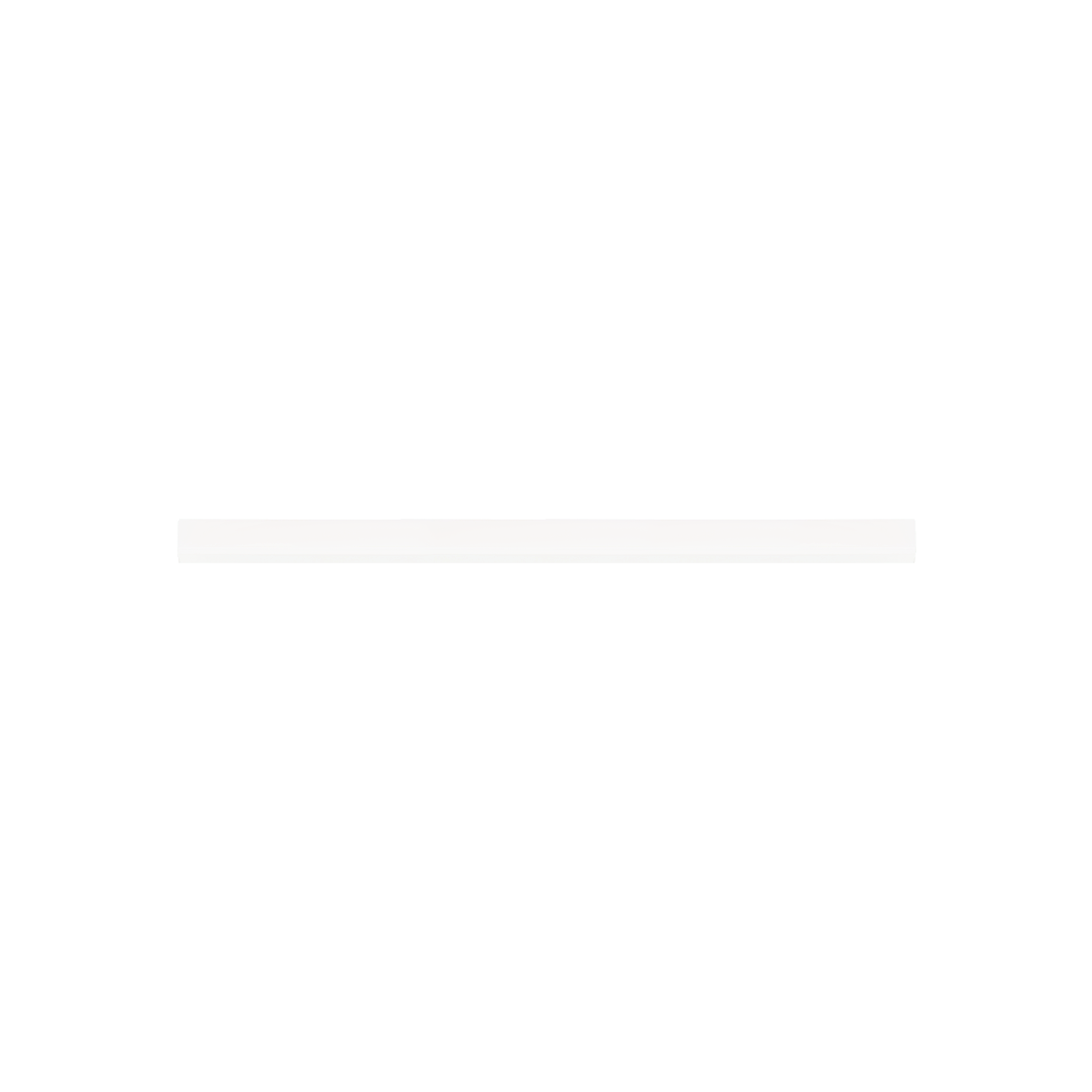

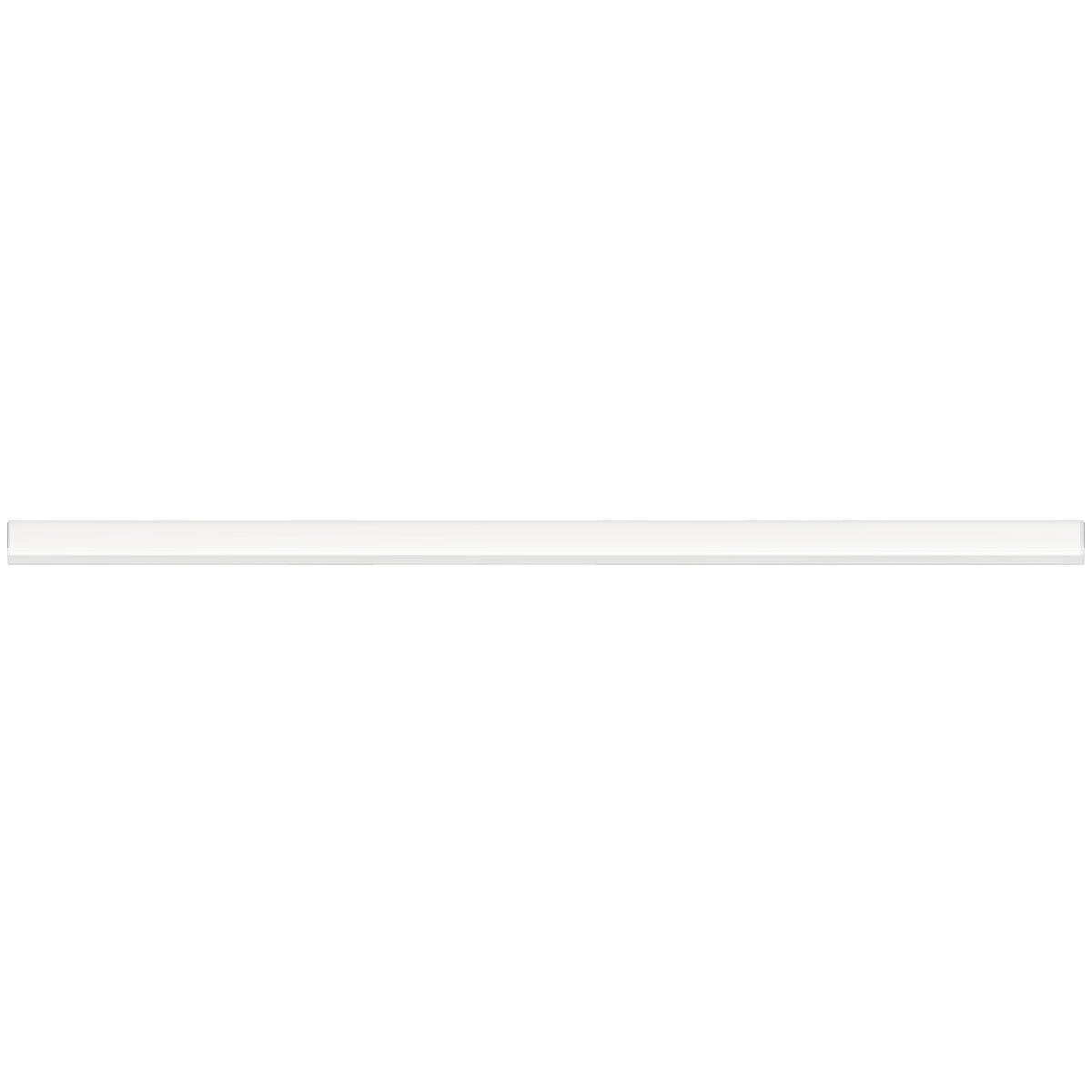

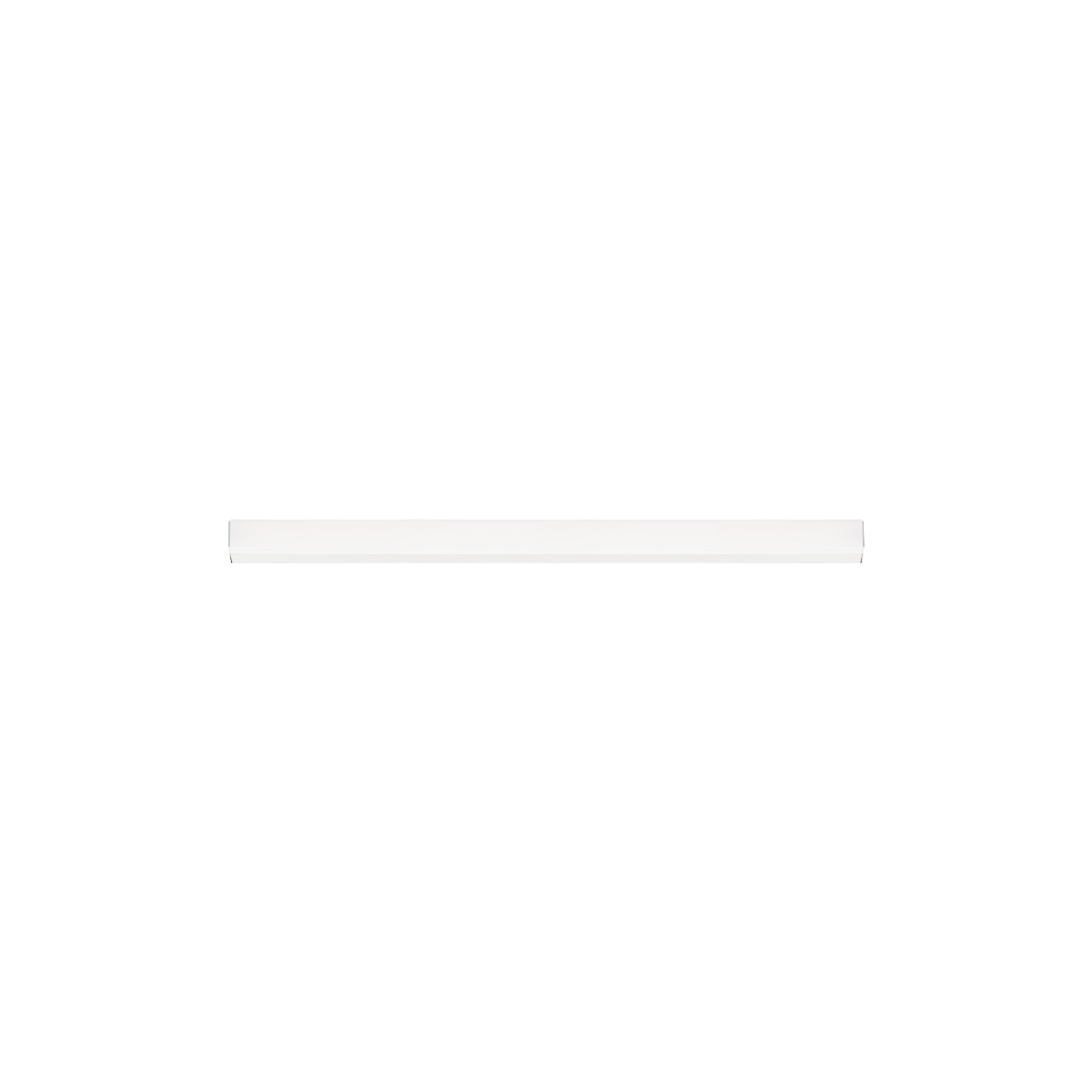

Aesthetic Images

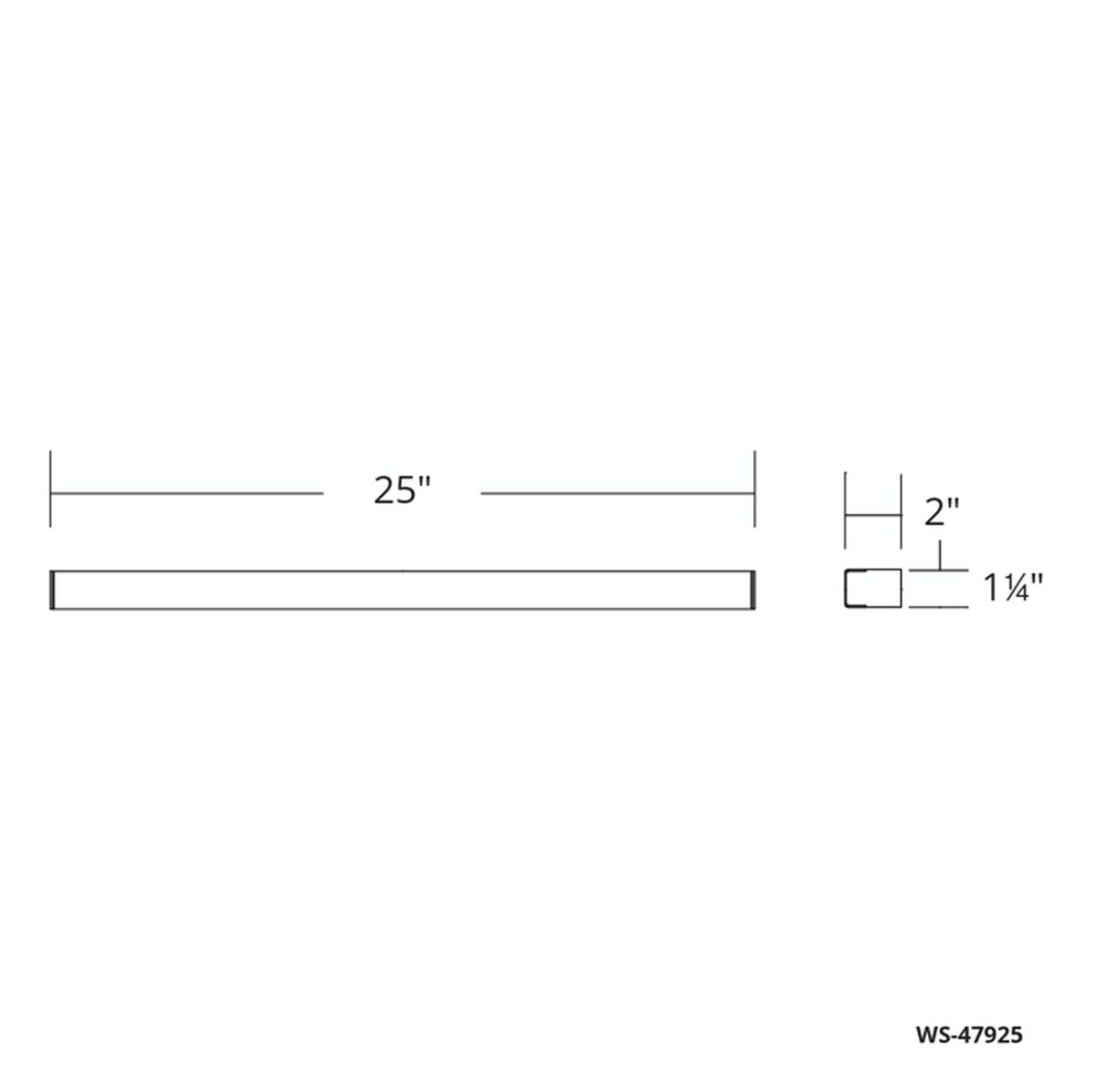

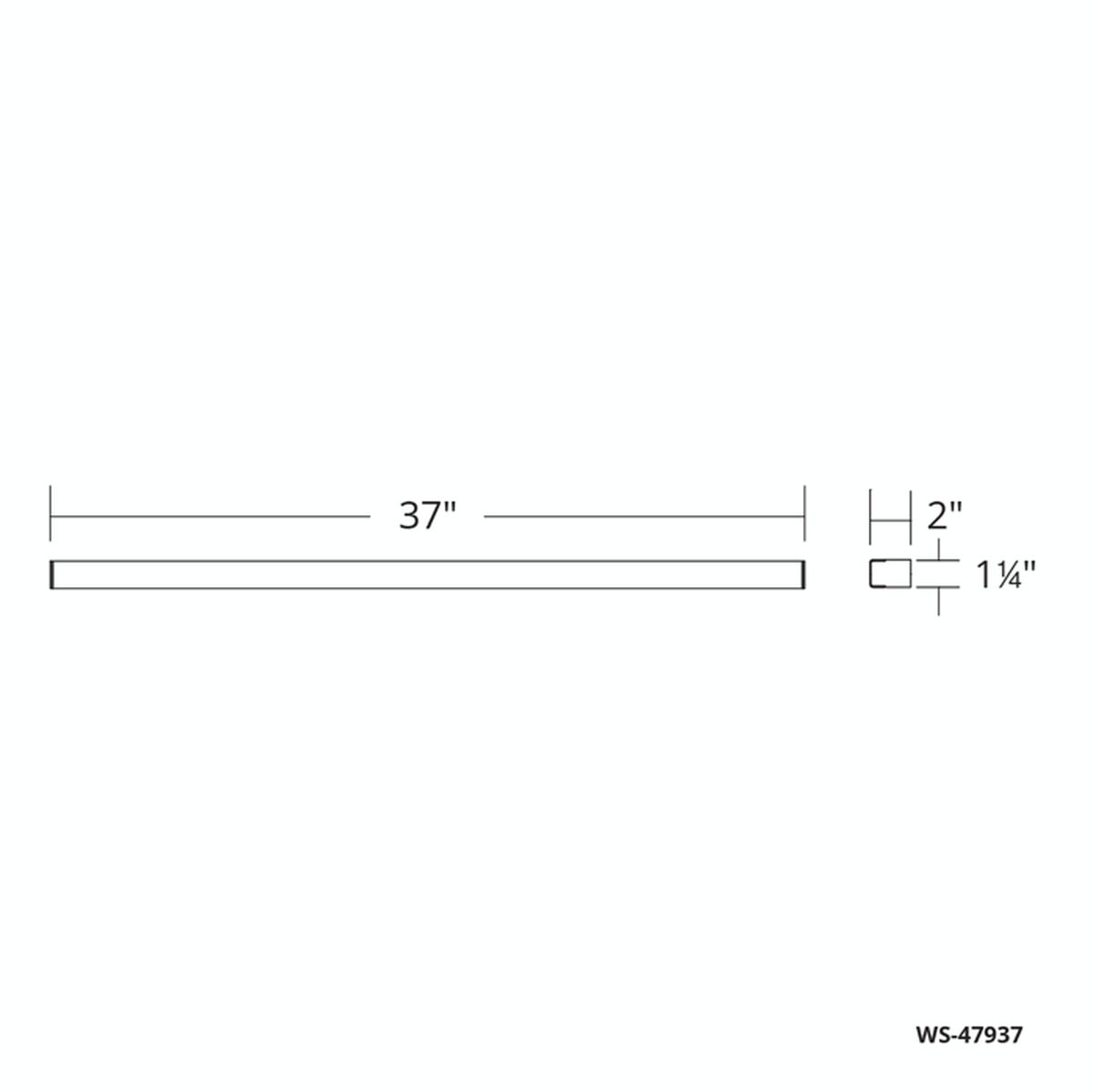

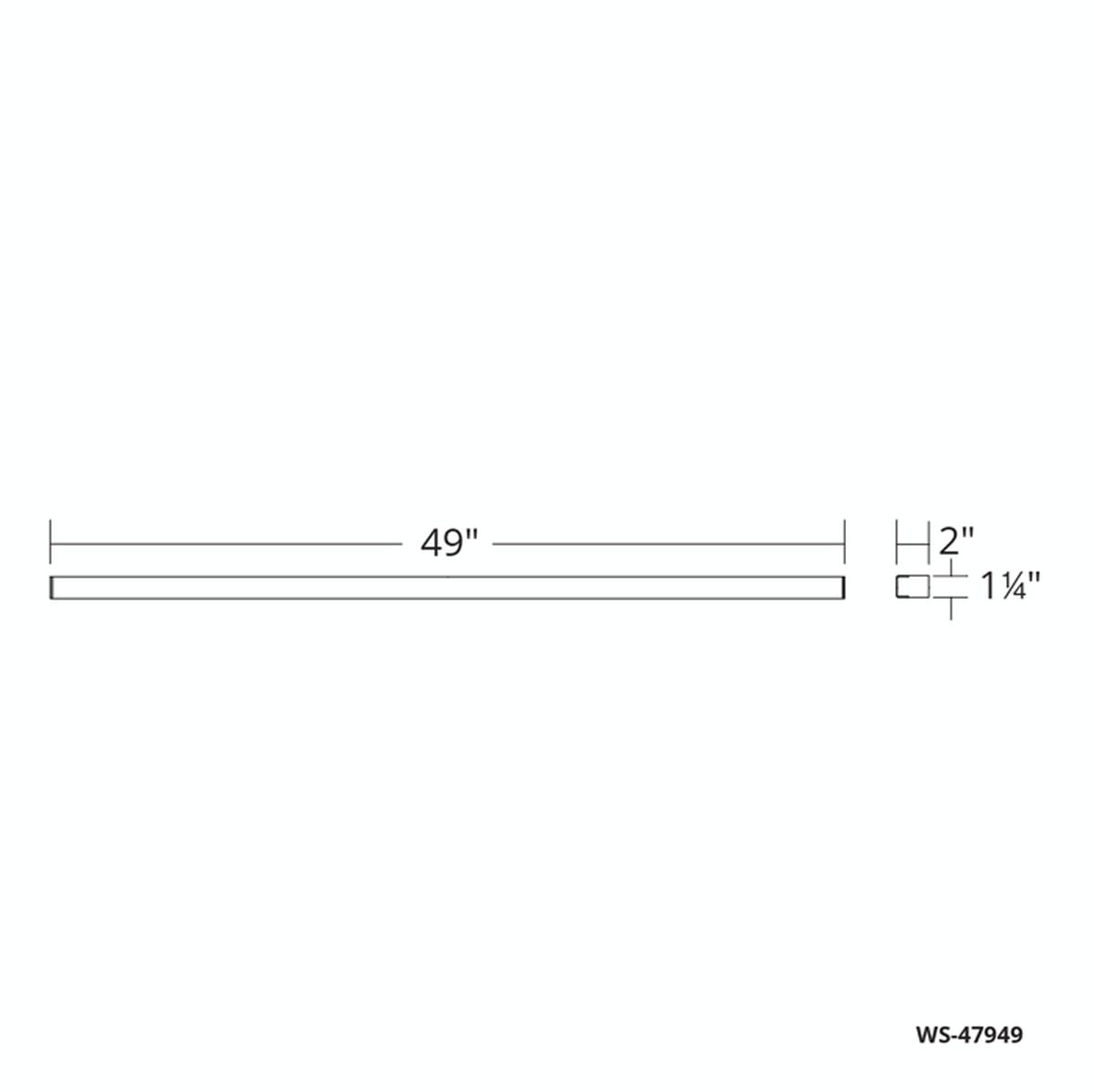

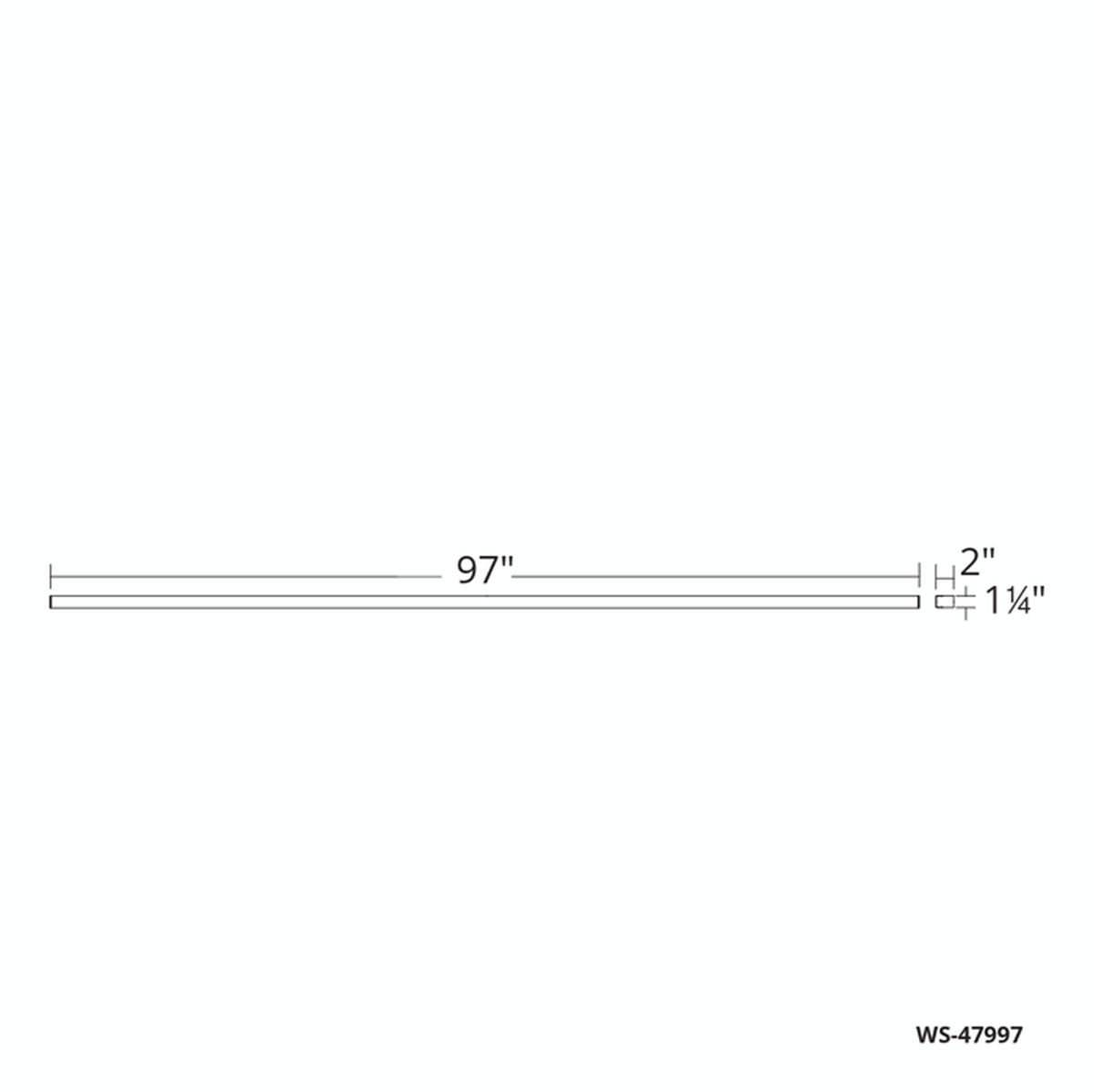

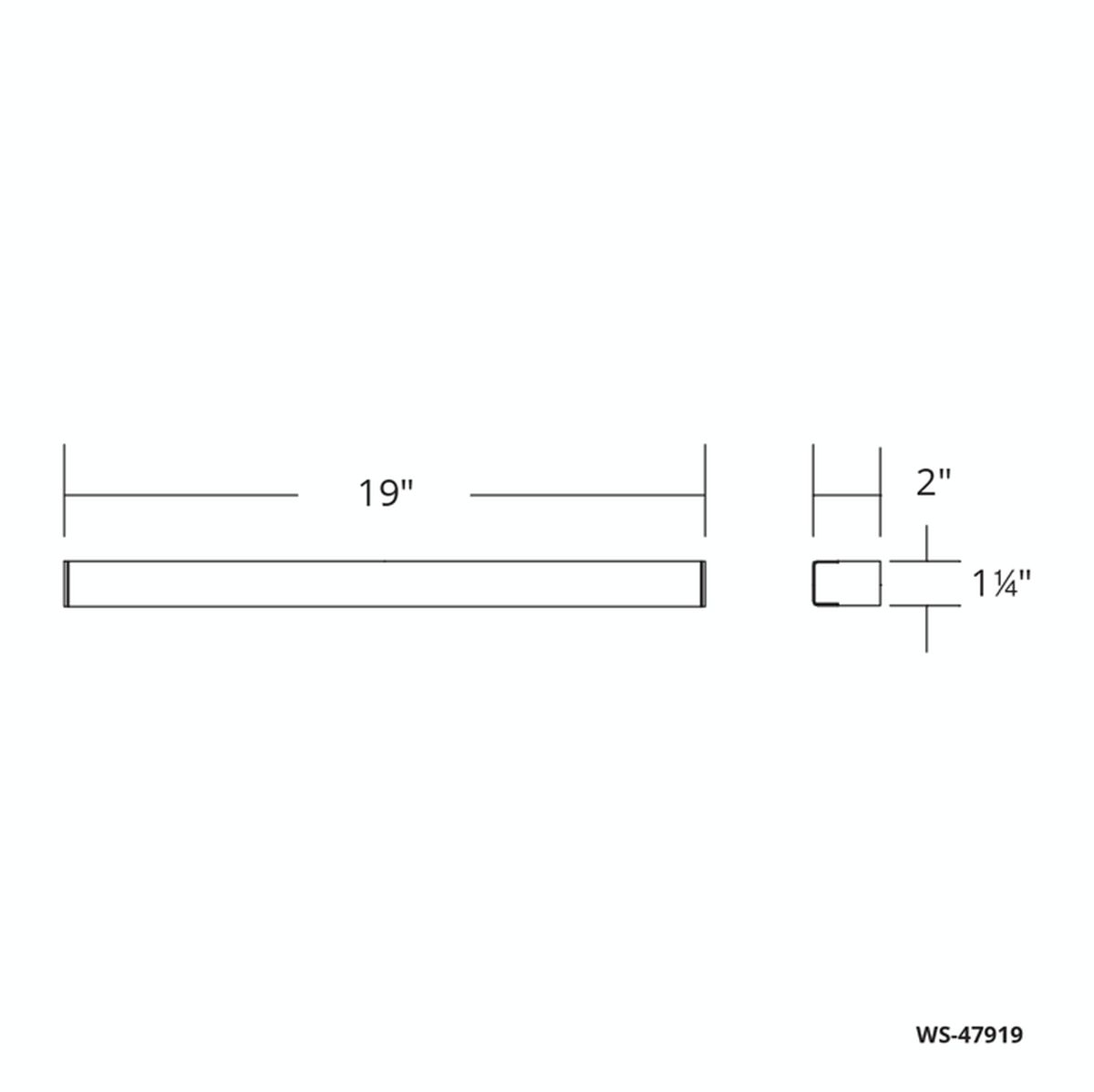

Line Drawing
