Description
The ever versatile Logo works across a wide range of small-space and medium-sized spaces and spreads light evenly through edge-lit technology. Perfect for hallways and stairways. Available in white and brushed nickel.
Specifications
| Model | Color Temperature | Width | Height | Length | Voltage | Watts | Finish |
|---|---|---|---|---|---|---|---|
| FM-4407 | 3000K |
73⁄8″ |
11⁄8″ |
73⁄8″ |
120-277v | 15 | BN Brushed Nickel |
| FM-4407 | 3000K |
73⁄8″ |
11⁄8″ |
73⁄8″ |
120-277v | 15 | WT White |
| FM-4411 | 3000K |
113⁄8″ |
11⁄8″ |
113⁄8″ |
120-277v | 20 | BN Brushed Nickel |
| FM-4411 | 3000K |
113⁄8″ |
11⁄8″ |
113⁄8″ |
120-277v | 20 | WT White |
Features
- Aluminum hardware, acrylic diffuser
- 1” profile, edge-lit illumination
- Can be surface-mounted over a 3”, 4” or 3/0-4/0 hybrid electrical box
- The integrated universal voltage driver (120V-220V-277V) is inside of fixture
- Can be mounted on ceiling or wall
- Dimmer: ELV/TRIAC
- CRI: 90
- Rated Life: 59000 hours
- Title 24 JA8: 2019 Compliant
CCT Chart

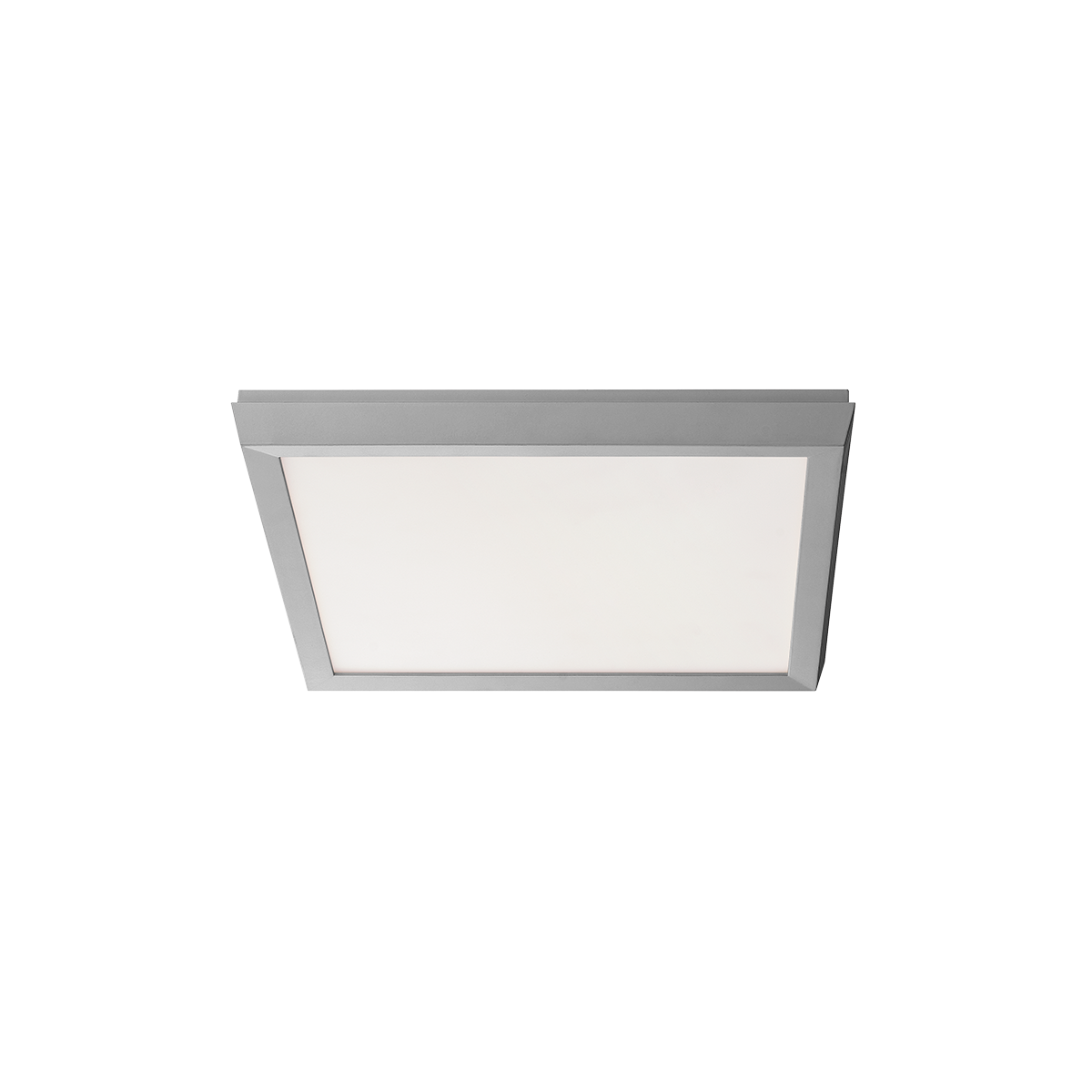

Aesthetic Images

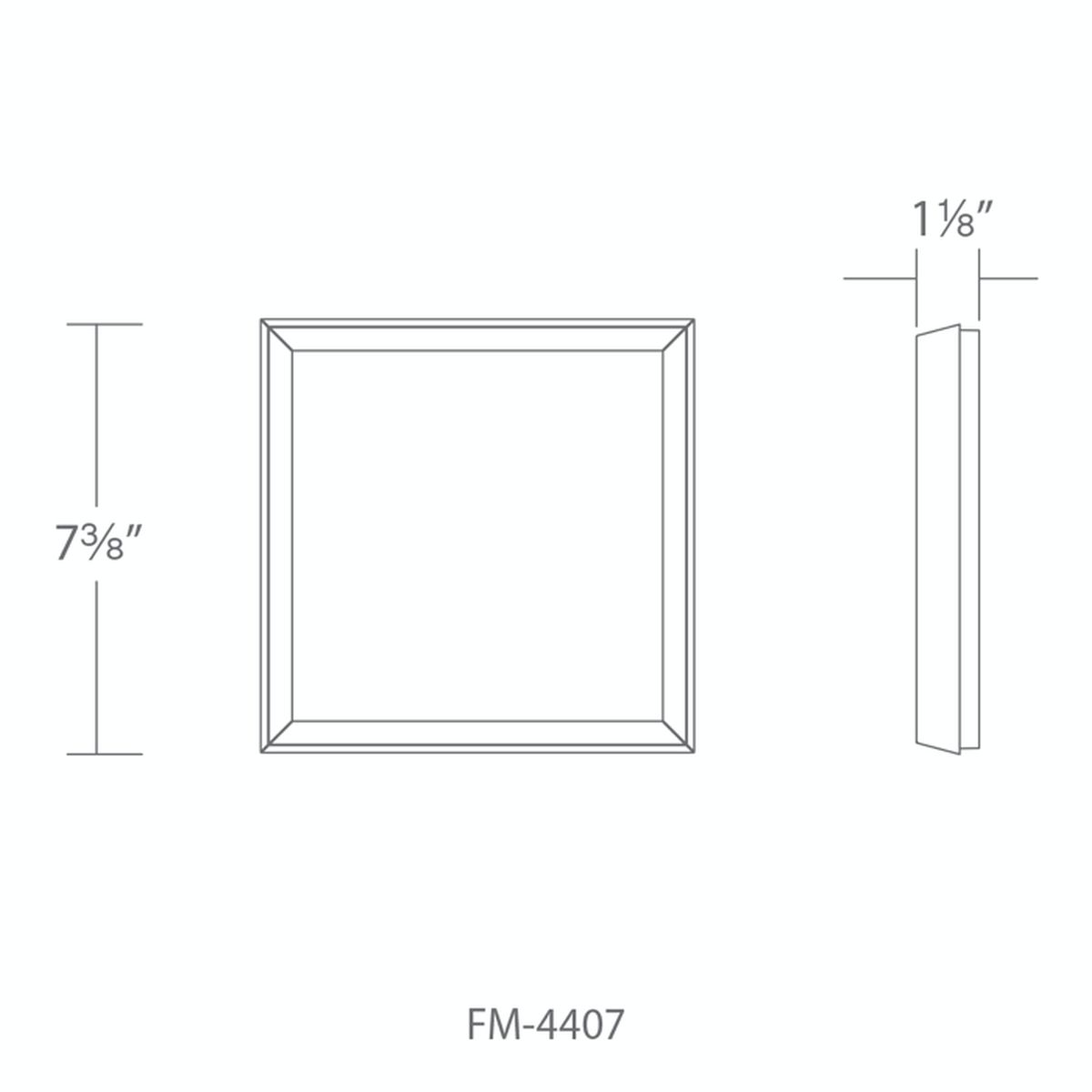

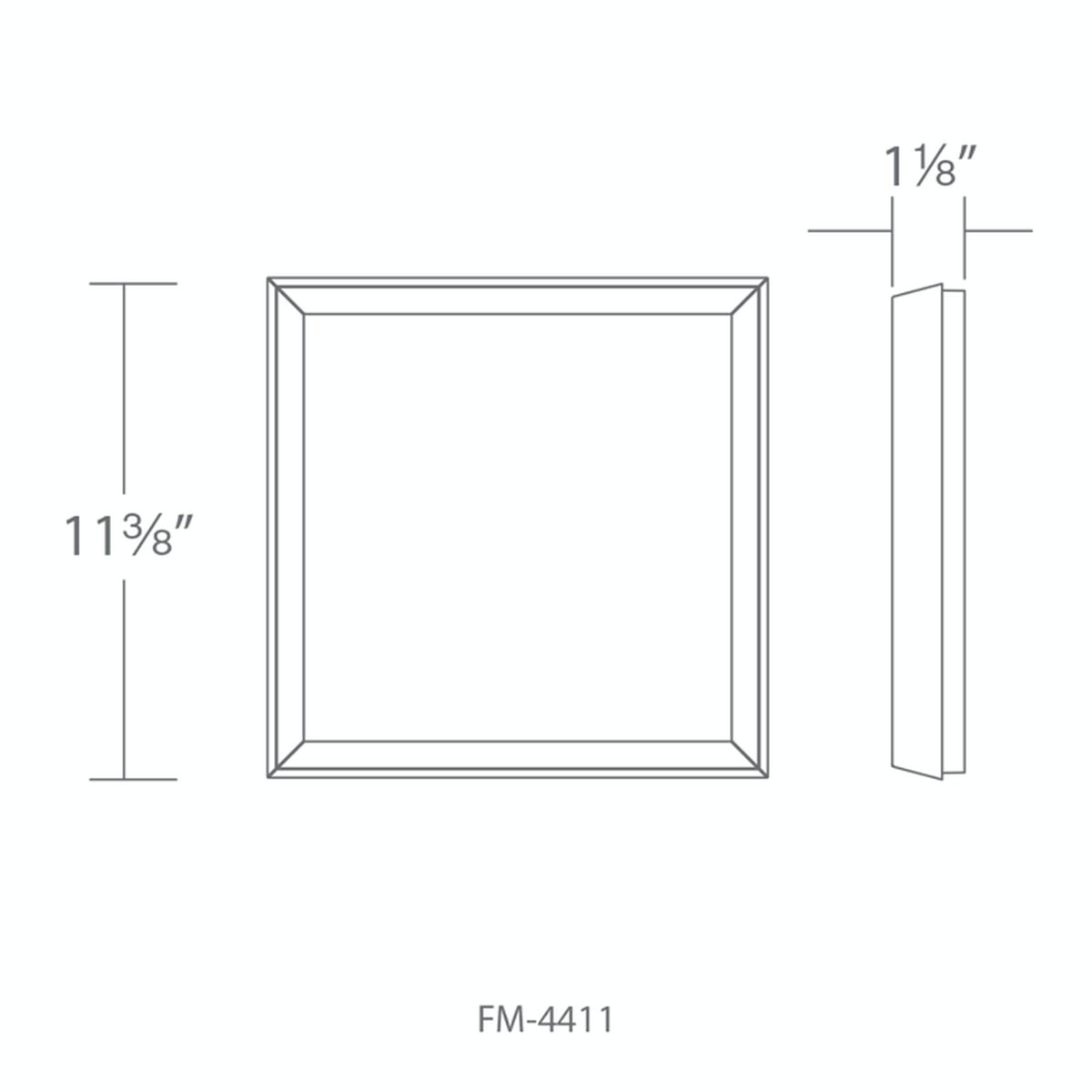

Line Drawing
