Description
This brand-new design in durable stainless steel handles the outdoor elements with ease, while the sleek polished hardware also gives interiors a welcome touch of industrial refinement. A user-friendly twist lock mechanism makes installation a snap. As for illumination, the finely crafted diffuser enhances the brightness for a beautiful mix of task and ambient light.
Specifications
| Model | Color Temperature | Width | Height | Length | Voltage | Watts | Finish |
|---|---|---|---|---|---|---|---|
| FM-W44806-30 | 3000K |
61⁄4″ |
21⁄2″ |
61⁄4″ |
120 VAC | 9 | SS Stainless Steel |
| FM-W44806-30 | 3000K |
61⁄4″ |
21⁄2″ |
61⁄4″ |
120 VAC | 9 | BK Black |
| FM-W44806-35 | 3500K |
61⁄4″ |
21⁄2″ |
61⁄4″ |
120 VAC | 9 | SS Stainless Steel |
| FM-W44806-35 | 3500K |
61⁄4″ |
21⁄2″ |
61⁄4″ |
120 VAC | 9 | BK Black |
| FM-W44809-30 | 3000K |
87⁄8″ |
21⁄2″ |
87⁄8″ |
120 VAC | 17 | SS Stainless Steel |
| FM-W44809-30 | 3000K |
87⁄8″ |
21⁄2″ |
87⁄8″ |
120 VAC | 17 | BK Black |
| FM-W44809-35 | 3500K |
87⁄8″ |
21⁄2″ |
87⁄8″ |
120 VAC | 17 | SS Stainless Steel |
| FM-W44809-35 | 3500K |
87⁄8″ |
21⁄2″ |
87⁄8″ |
120 VAC | 17 | BK Black |
| FM-W44812-30 | 3000K |
121⁄8″ |
21⁄2″ |
121⁄8″ |
120 VAC | 26 | SS Stainless Steel |
| FM-W44812-30 | 3000K |
121⁄8″ |
21⁄2″ |
121⁄8″ |
120 VAC | 26 | BK Black |
| FM-W44812-35 | 3500K |
121⁄8″ |
21⁄2″ |
121⁄8″ |
120 VAC | 26 | SS Stainless Steel |
| FM-W44812-35 | 3500K |
121⁄8″ |
21⁄2″ |
121⁄8″ |
120 VAC | 26 | BK Black |
| FM-W44815-30 | 3000K |
15″ |
23⁄8″ |
15″ |
120 VAC | 31 | SS Stainless Steel |
| FM-W44815-30 | 3000K |
15″ |
23⁄8″ |
15″ |
120 VAC | 31 | BK Black |
| FM-W44815-35 | 3500K |
15″ |
23⁄8″ |
15″ |
120 VAC | 31 | SS Stainless Steel |
| FM-W44815-35 | 3500K |
15″ |
23⁄8″ |
15″ |
120 VAC | 31 | BK Black |
Features
- Weather-resistant 316 marine grade stainless steel body
- Lightweight injection-molded acrylic diffuser enhances brightness
- Easy installation with twist-lock mechanism (no visible hardware)
- No driver or transformer needed
- 277V option available for special order (for 9", 12" & 15" only)
- Dimmer: ELV
- CRI: 90
- Rated Life: 54000 hours
- Title 24 JA8: 2019 Compliant
CCT Chart

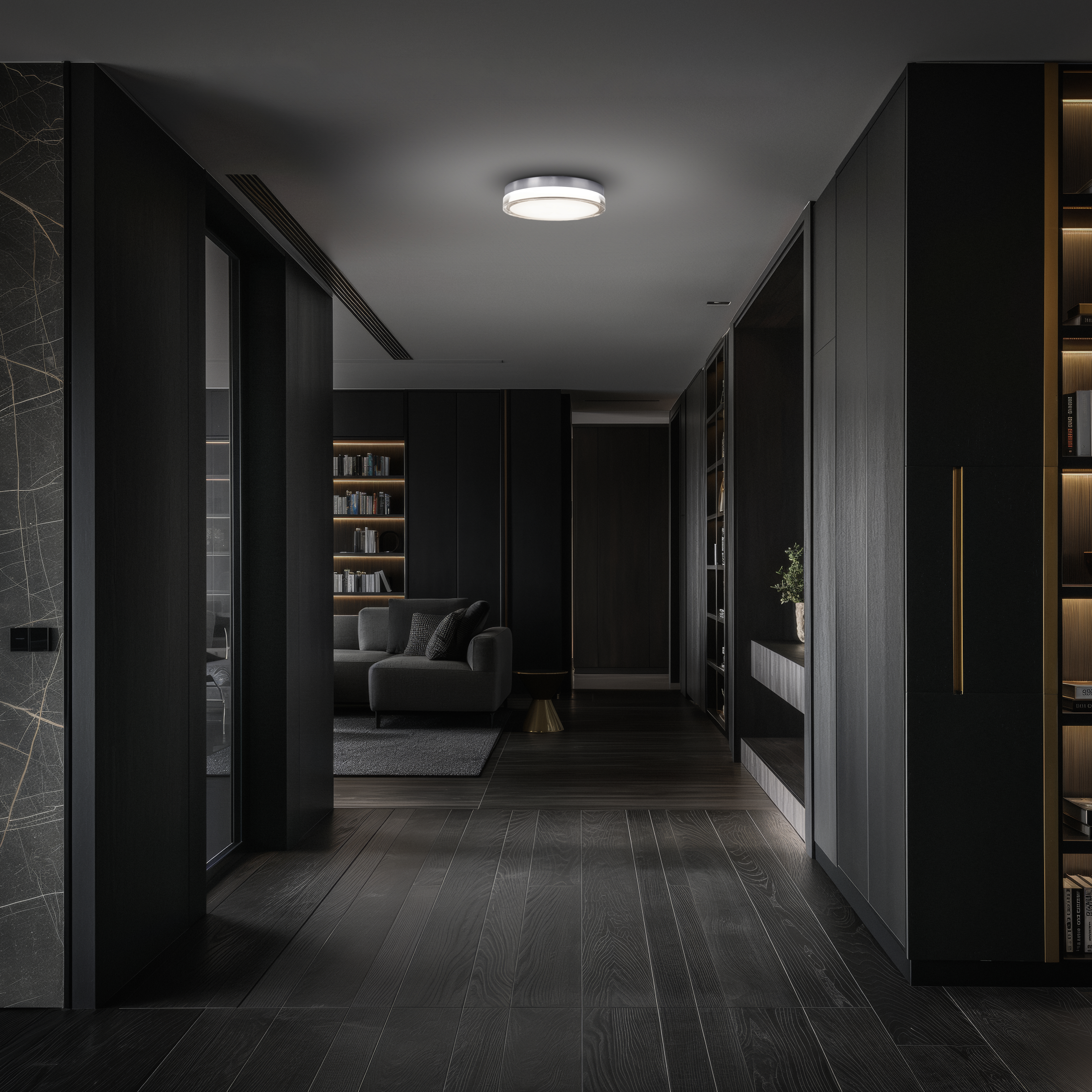

Aesthetic Images

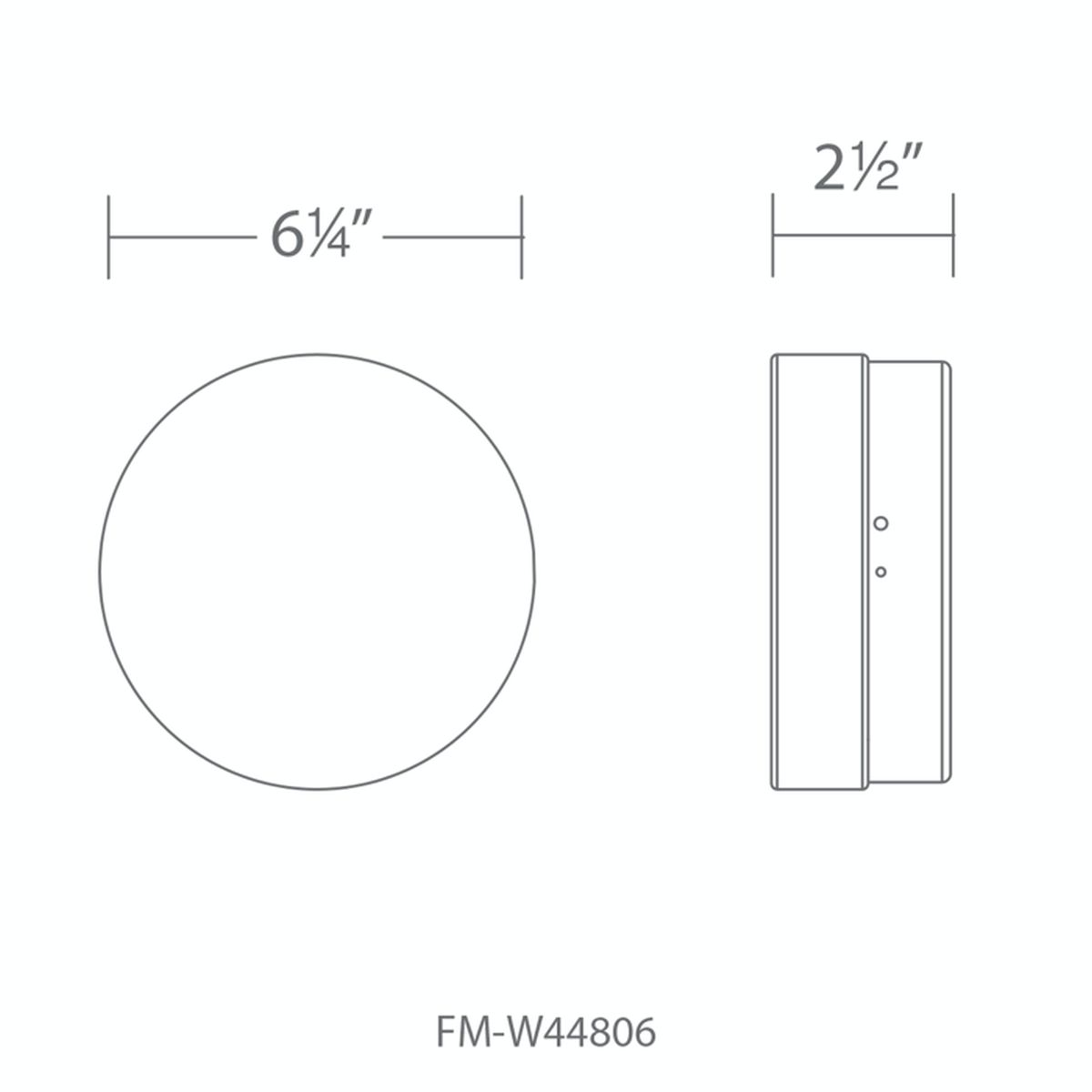

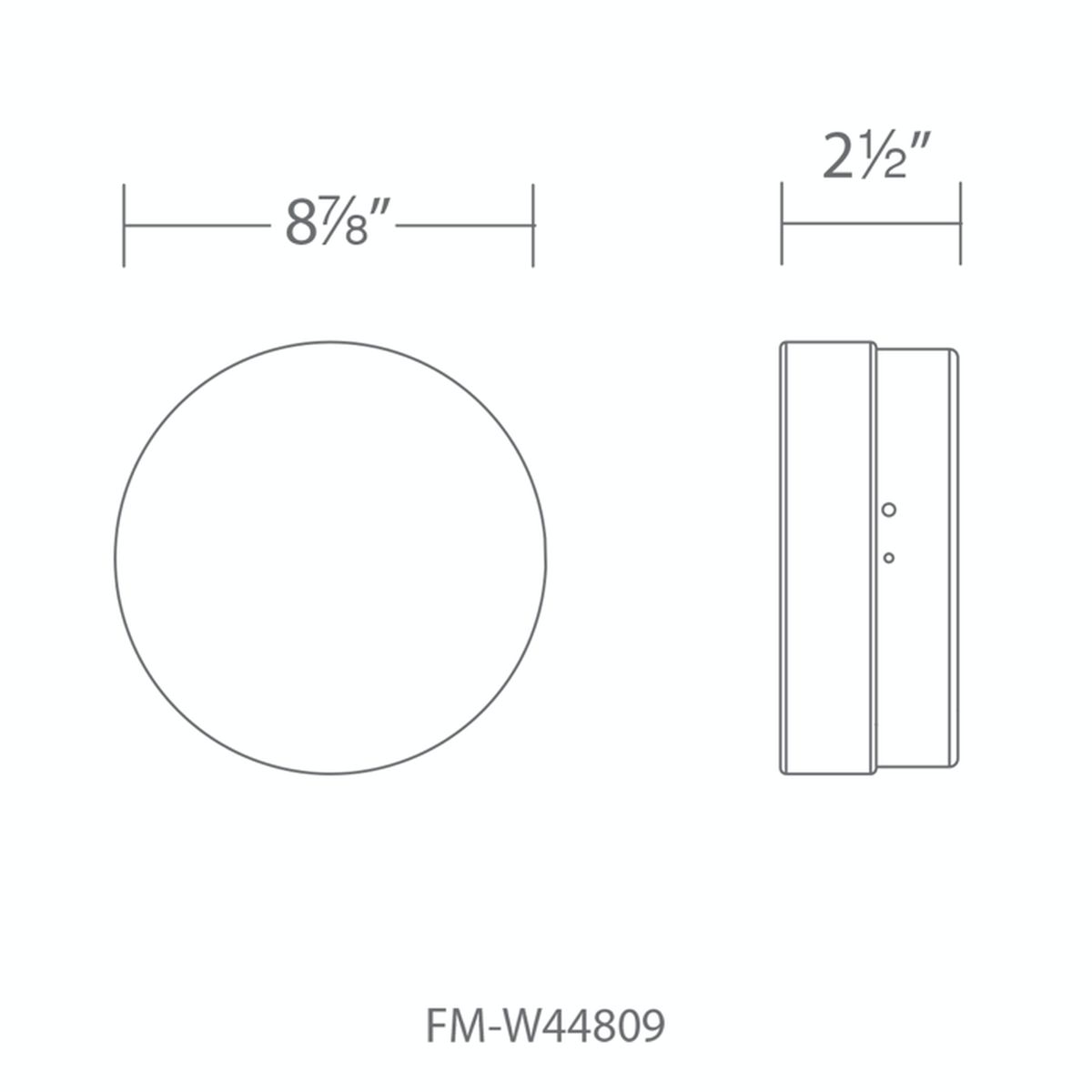

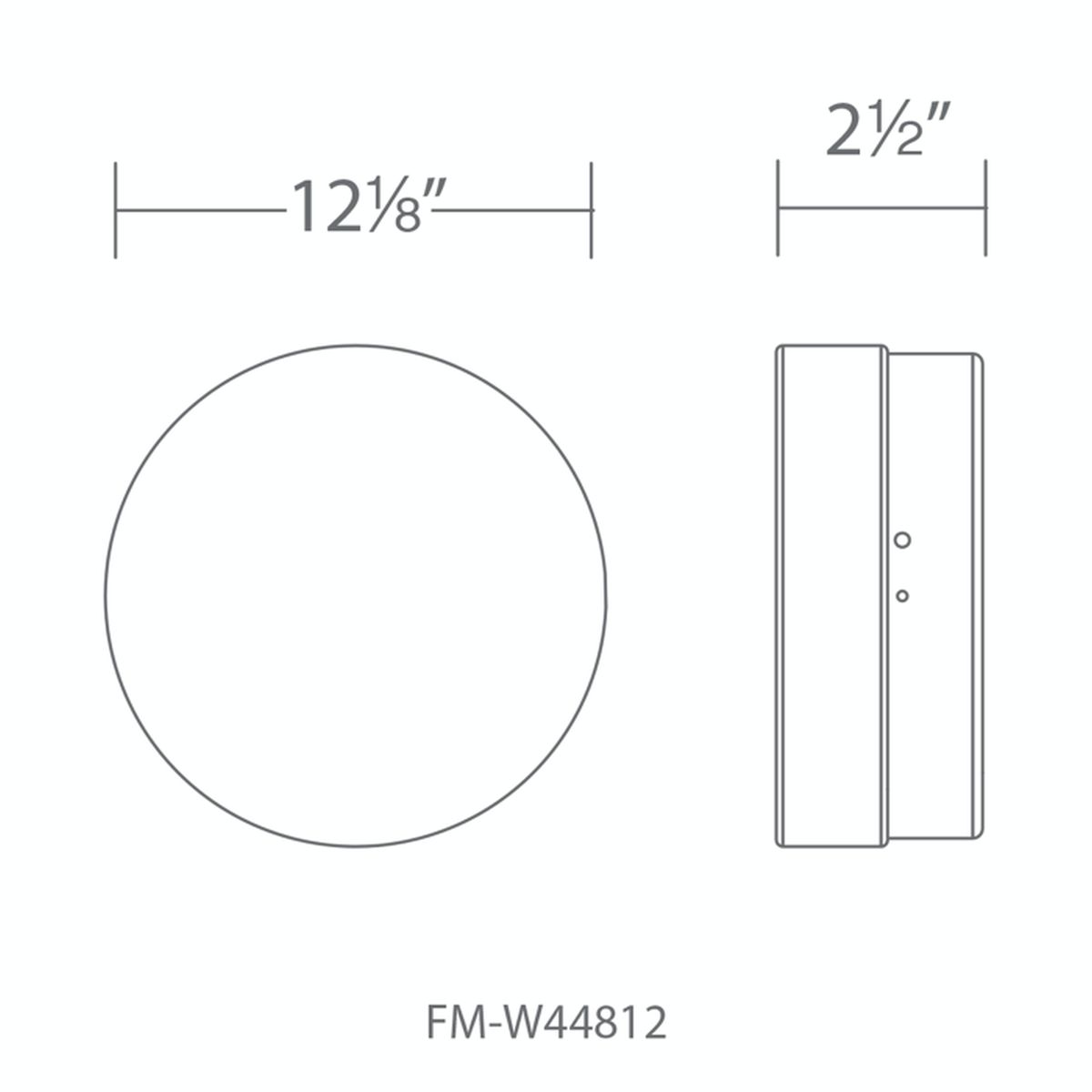

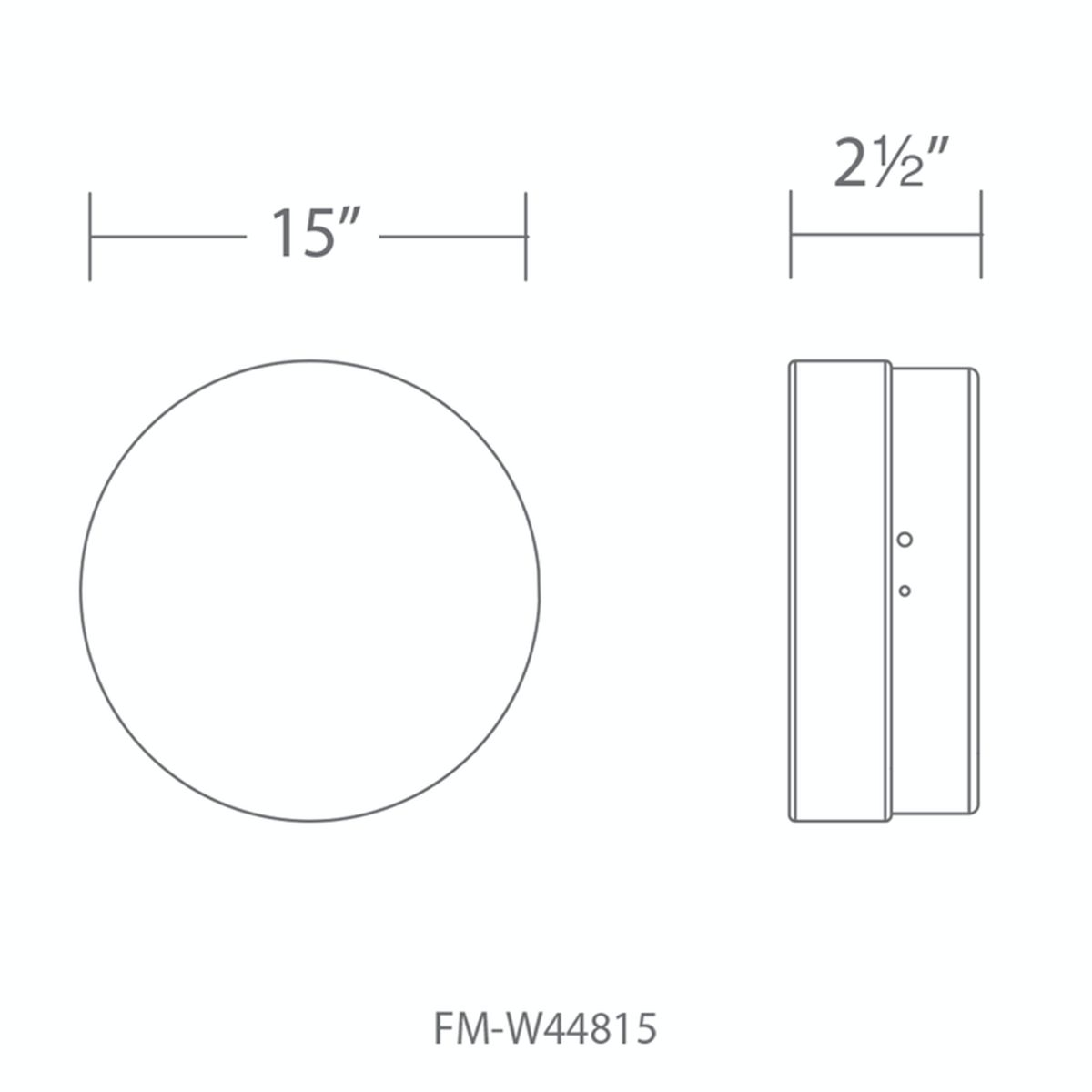

Line Drawing
